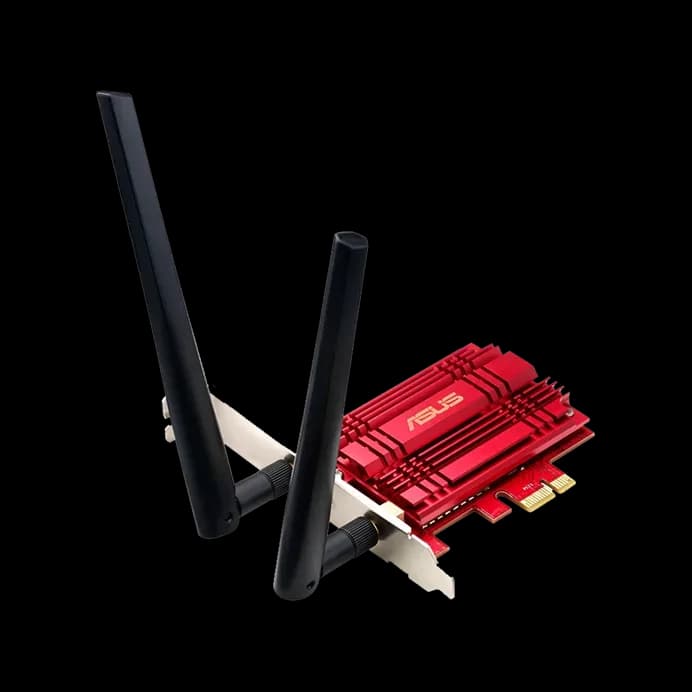

ASUS PCE-AC56 802.11ac Dual-Band Wireless-AC1300 PCI-E Adapter

Speed and Performance

• 5 GHz band: up to 867 Mbps – three times faster than 802.11n Wi-Fi

• 2.4 GHz band: up to 400 Mbps (with TurboQAM) – 33% faster than standard 802.11n

• Interface: PCI Express

• Chipset: Broadcom 5th generation 802.11ac

Antennas and Coverage

• Antennas: 2x R SMA Antenna (detachable)

• External magnetic antenna base for flexible antenna placement

• High-power design: reduces dead zones with 150% greater coverage

• ASUS AiRadar technology: beamforming, high power amplification, and exclusive RF fine-tuning for extended coverage and enhanced stability

Security

• Support: 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise

Cooling and Durability

• Aluminum heatsink for heat dissipation and stable operation

Dimensions and Weight

• Dimensions: 120.9 x 99.1 x 21.6 mm

• Weight: 105 g (device only)

• Operating systems: Windows 10, 8.1, 8, 7, Vista, XP (32-bit/64-bit)

• Full backward compatibility with 802.11a/b/g/n standards

• Requires a PCI Express x1 (or larger) slot on the motherboard

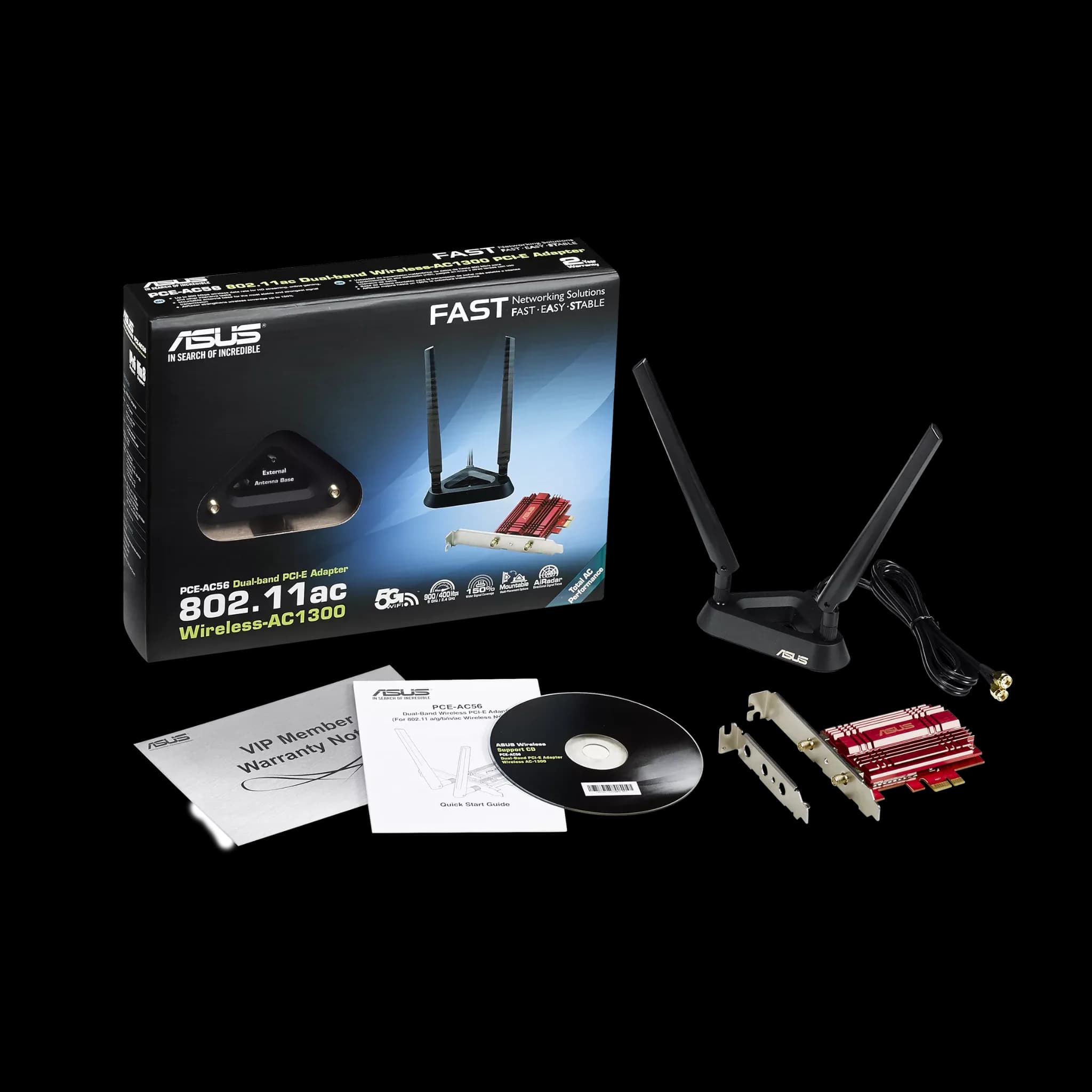

Box Contents

• PCE-AC56 Adapter

• 2 dipole antennas

• External magnetic antenna base

• Low Profile Bracket

• Driver CD

• Warranty card
