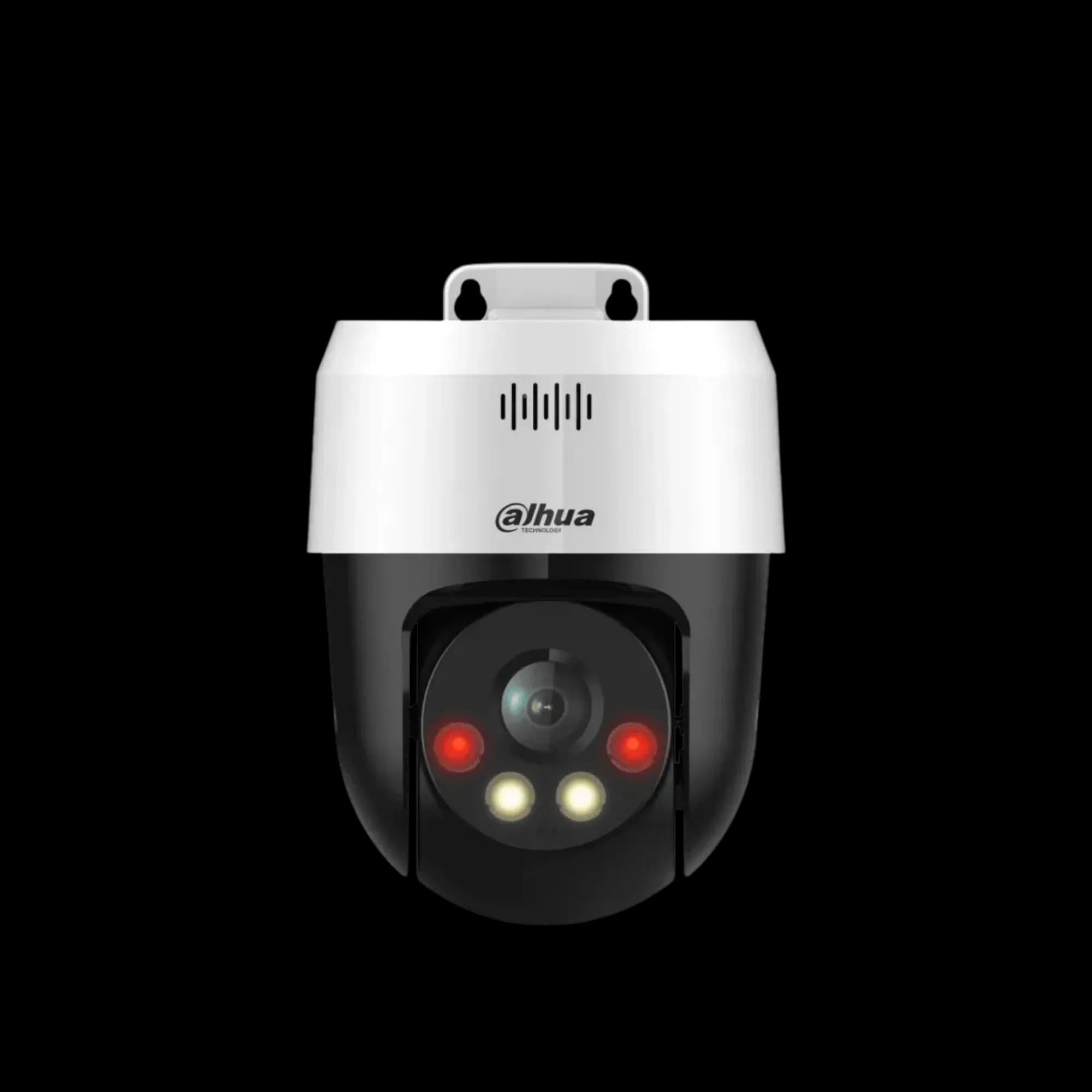

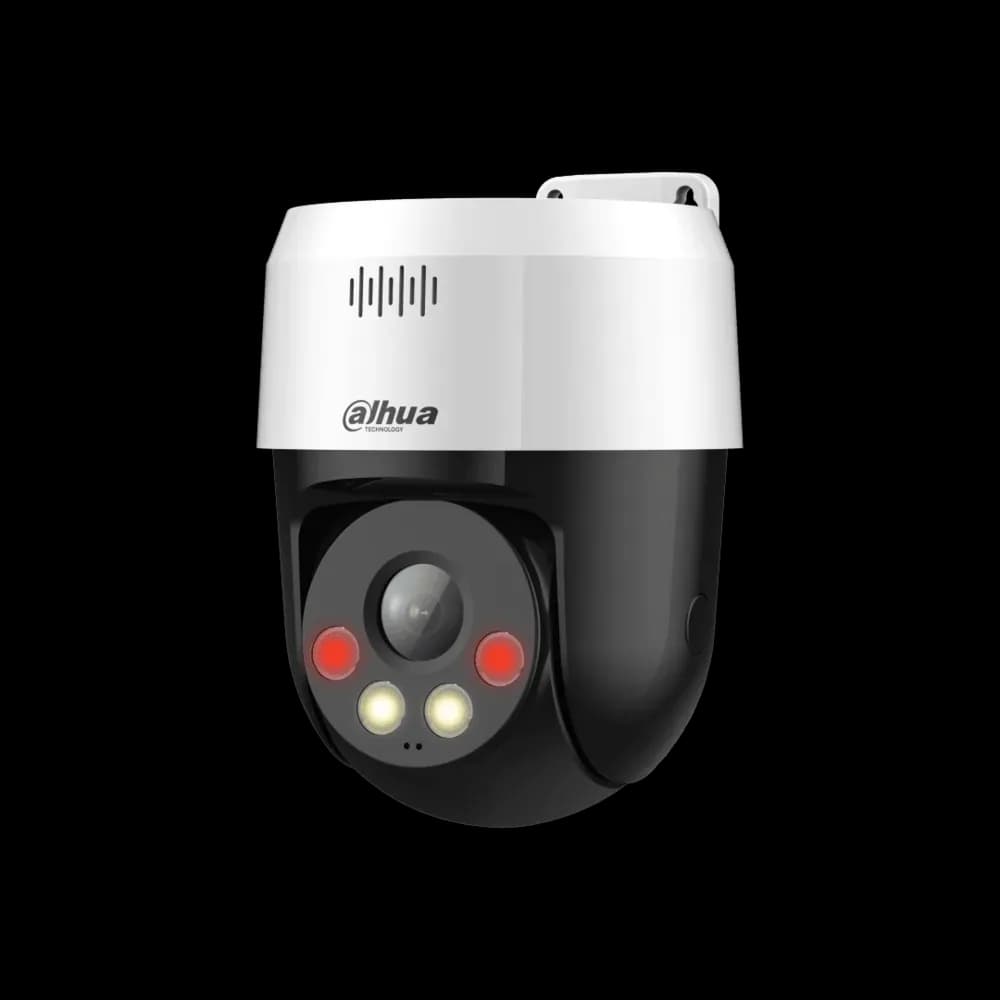

DAHUA SD2A500HB – 5MP IP Camera, IR, 2.8mm, H.265.

• Ideal for: 24/7 outdoor and indoor surveillance, parking lots, streets, yards, warehouses, and perimeters

• Applications: Full-Color provides color images at night, while PTZ enables remote control and wide coverage

• Easy installation with wall or ceiling mounting

• Control via DMSS app

Note: This model is PTZ (Pan-Tilt-Zoom) and is NOT a fixed camera. There are two main variants: -AW with Wi-Fi and -A-PV with PoE. The lens is 4.0 mm (NOT 2.8 mm as shown in the product description). Please verify the exact model before purchasing.

Image Sensor and Resolution

• Image Sensor: 1/2.8" 5 Megapixel STARVIS™ CMOS

• Max Resolution: 2560 (H) × 1920 (V) (5MP)

• Frame Rate: up to 20 fps at 5MP

• Min. Illumination: 0.005 lux@F1.6 (Color), 0.0005 lux@F1.6 (B/W), 0 lux (illuminator on)

Lens and Field of View

• Lens Type: Fixed-focal

• Focal Length: 4.0 mm

• Max. Aperture: F1.6

• Field of View (4.0 mm): H: 80.4°, V: 58.1°, D: 104.8°

Full-Color and Illumination

• Full-Color Technology: 24/7 color imaging even in low-light conditions

• Illumination Distance: up to 30 m (IR and White Light)

• Illuminator: 2 IR LED + 2 Warm Light LED

• Illuminator Control: Auto/Manual/Off

PTZ and Adjustment

• Pan Range: 0° to 345°

• Tilt Range: 0° to +80°

• Manual Speed: Pan: 0.1°–74°/s, Tilt: 0.1°–36.4°/s

• Preset Speed: Pan: 62°/s, Tilt: 36.3°/s

• Preset Positions: 300

Video Compression and Storage

• Codec: Smart H.265+, H.265, Smart H.264+, H.264, H.264B, MJPEG (Sub Stream)

• Streaming Capability: 2 streams

• ROM: 128 MB, RAM: 128 MB

• Micro SD Card: up to 512 GB

Artificial Intelligence and Analytics

• Human Detection: accurate human detection

• IVS: Tripwire and Intrusion

• Active Deterrence: white light warning and sound alarm

• WDR: DWDR

Audio

• Built-in Microphone and Speaker: Yes (Two-way Talk)

• Audio Compression: PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1

Connectivity and Power

• Network Interface: 1x RJ-45 (10/100 Base-T)

• Power Supply: 12 VDC or PoE (802.3af)

• Wireless: Wi-Fi (on -AW variant)

Physical and Environmental

• Protection: IP66 (dust and water resistant)

• Operating Temperature: -40°C to +60°C

• Default IP Address: 192.168.1.108

• ONVIF: Profile S

Box Contents

• Dahua SD2A500HB Camera

• Installation Guide

• Power Adapter (depending on variant)
