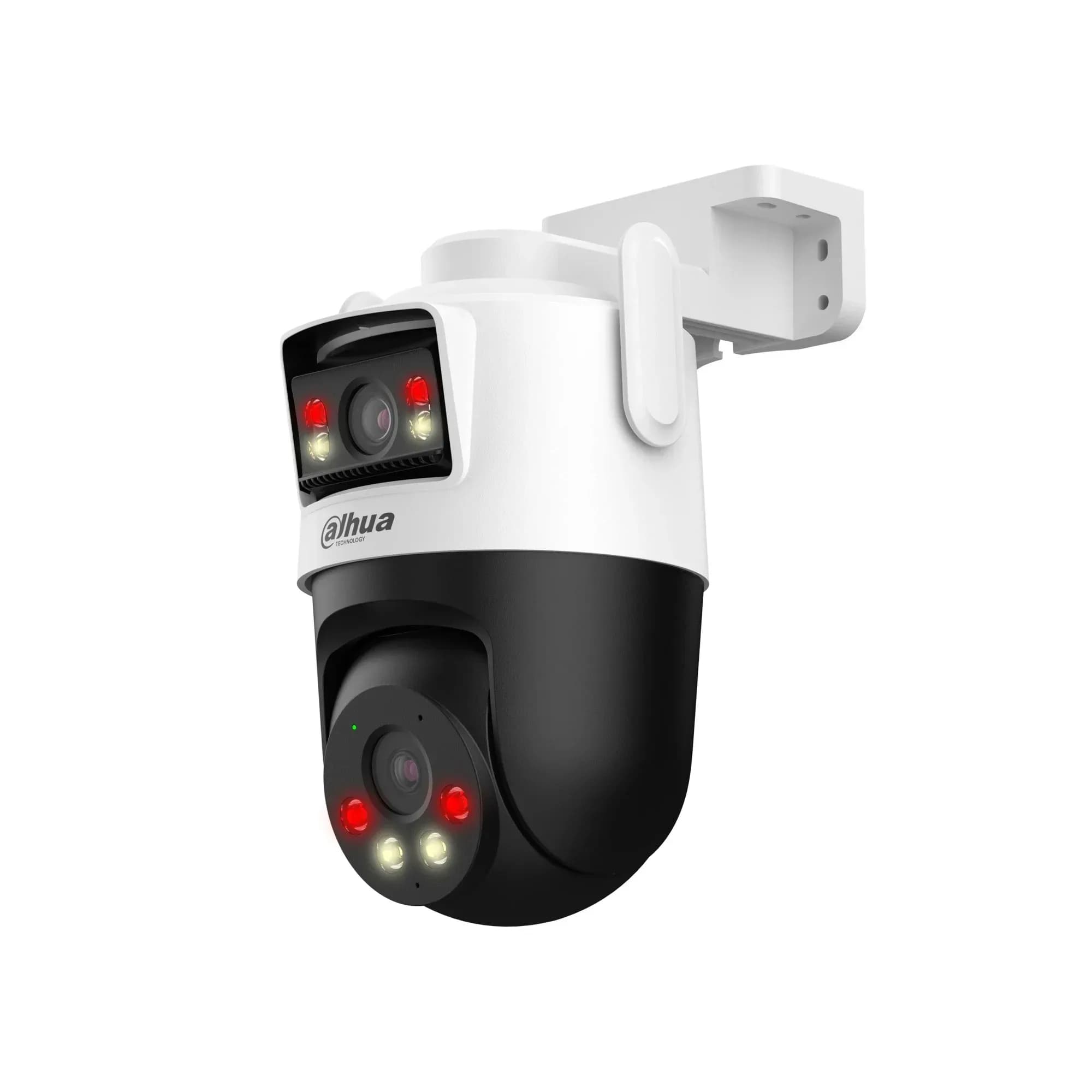

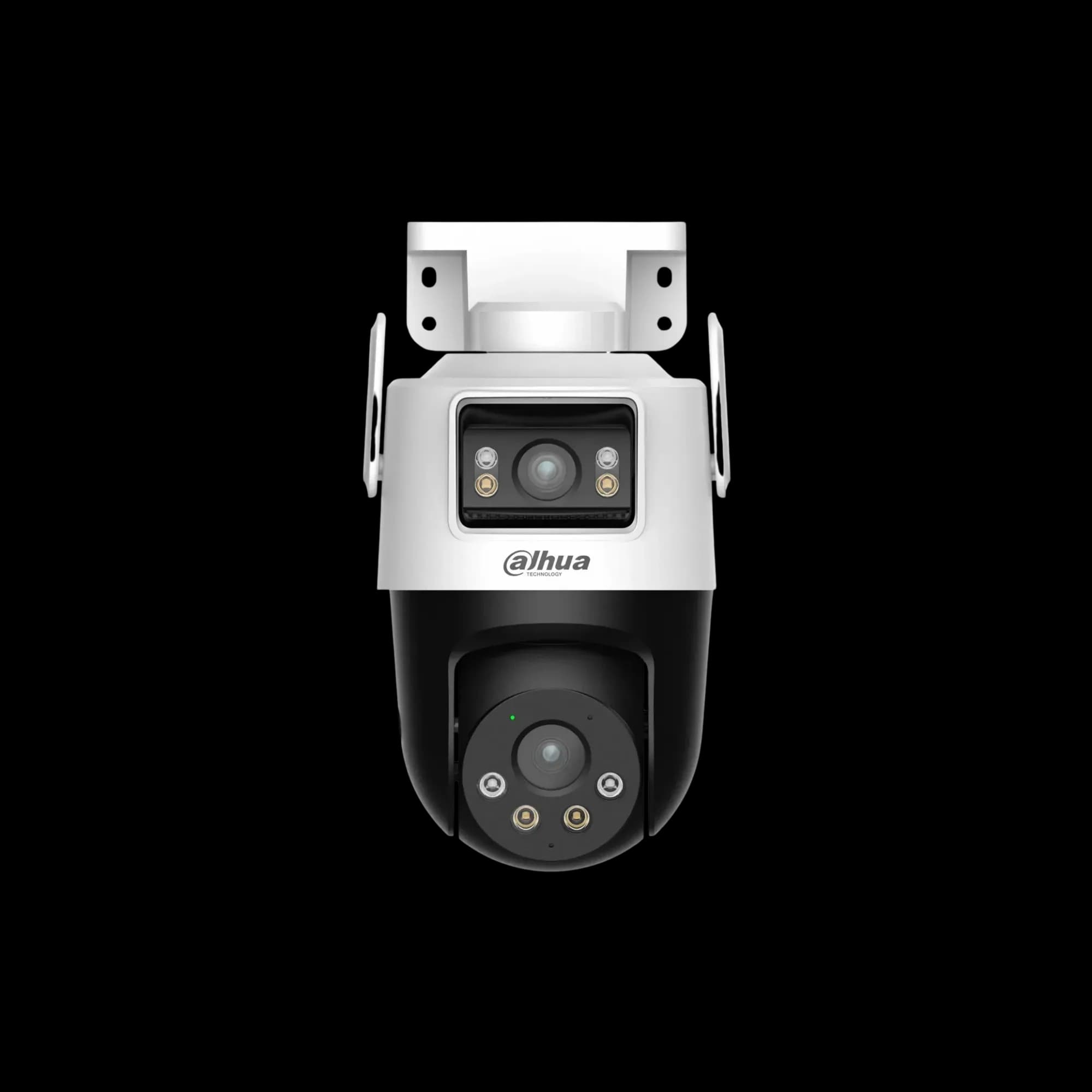

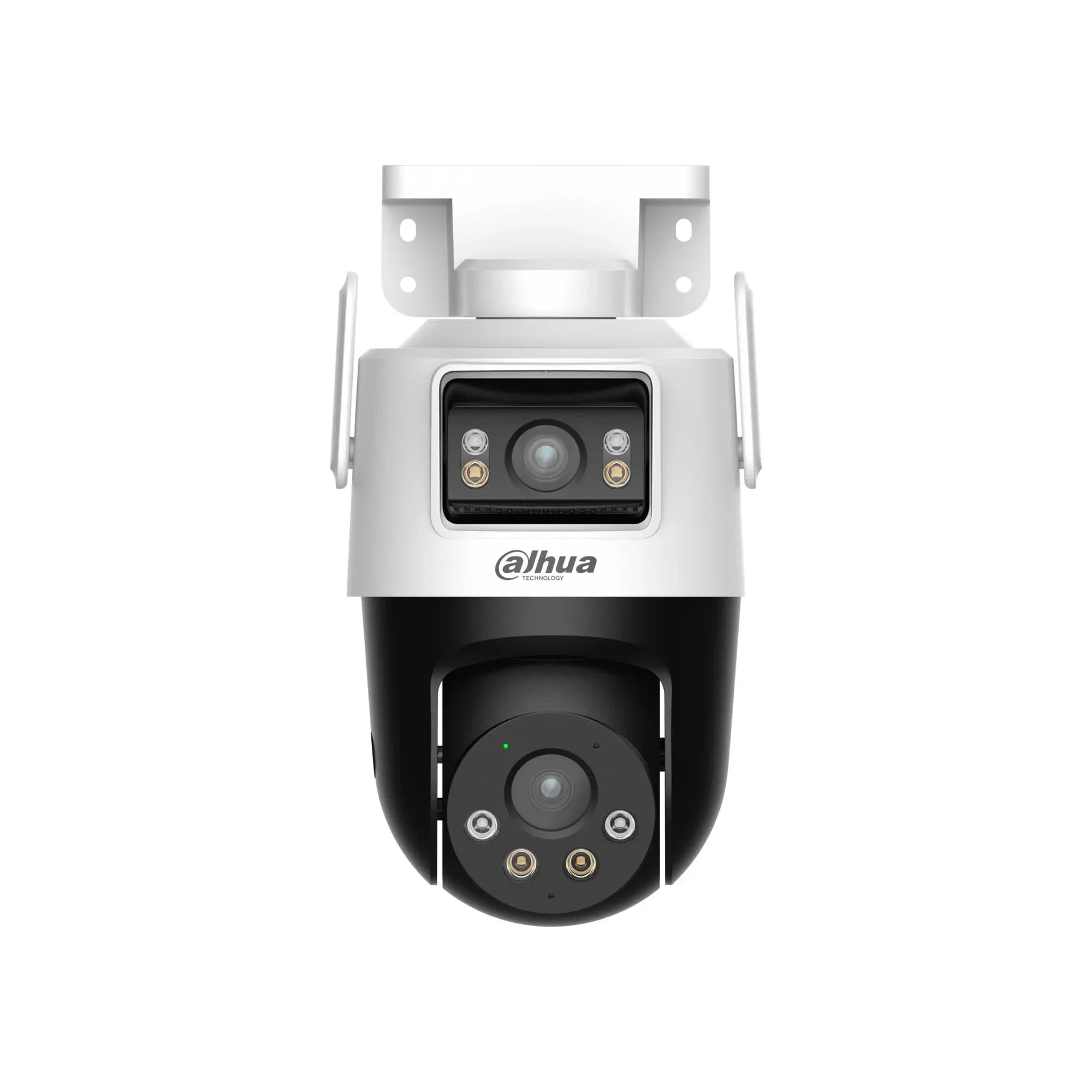

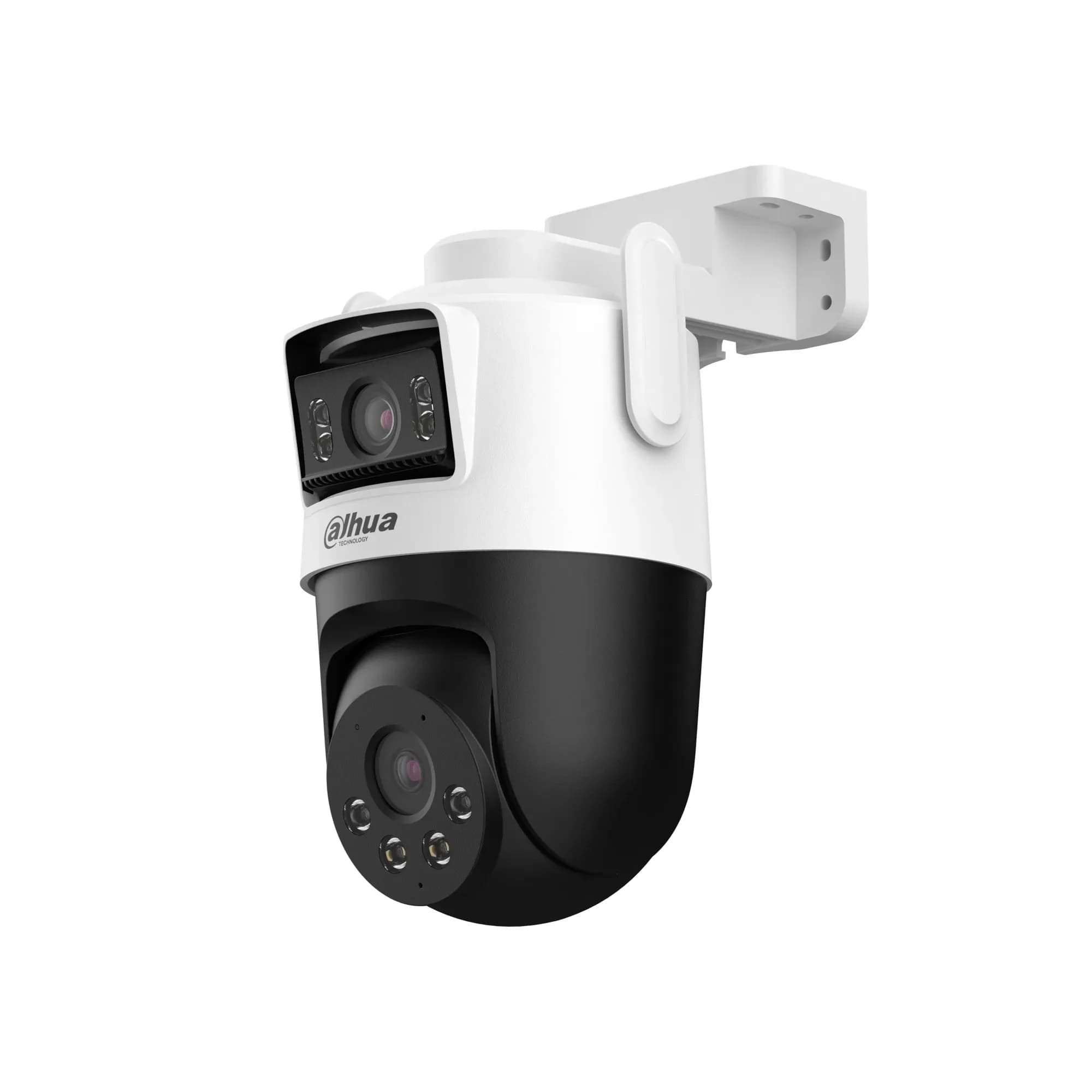

Dahua DH-P5D-5F-PV – 5MP IP Camera, IR, H.265, PoE.

• Ideal for: 360° outdoor surveillance with no blind spots, Pan & Tilt capability for complete coverage

• Applications: parking lots, yards, streets, perimeters, and residential areas

Image Sensor and Resolution

• Image Sensor: 1/3" CMOS

• Max Resolution: 2880 (H) × 1620 (V) (5MP+5MP)

• Frame Rate: 15 fps at 2880x1620

Lens and Field of View

• Fixed Lens: 2.8 mm (F1.6), FOV H: 95°, V: 53°, D: 110°

• PT Lens: 6 mm (F1.6), FOV H: 49°, V: 26°, D: 57°

• Angle Adjustment Fixed Lens: -10° to 15°

• Angle Adjustment PT Lens: Pan: 0° to 352°, Tilt: 0° to 90°

Night Vision and Illumination

• IR Distance: Fixed Lens up to 30 m, PT Lens up to 50 m

• Warm Light Distance: Fixed Lens up to 20 m, PT Lens up to 40 m

• Illuminator: 2x IR LED + 2x Warm Light for each lens

Video Compression and Storage

• Codec: H.265

• Main Stream: 2880×1620@15 fps

• Sub Stream: 640×360@15 fps

• Micro SD Card: up to 256 GB (local storage)

Artificial Intelligence and Analytics

• Human Detection and Vehicle Detection

• Automatic Tracking of Targets

• Sound and Light Alarm: triggers siren and light upon intrusion detection

Audio and Connectivity

• Built-in Mic and Speaker for Two-Way Talk

• Wi-Fi: IEEE 802.11b/g/n/ax (Wi-Fi 6), 2.4 GHz

• Wi-Fi Pairing: Bluetooth pairing

• Network Interface: RJ-45 (10/100 Base-T)

Power and Environment

• Power Supply: 12 VDC

• Power Consumption: Basic 2.6 W, Max 10.6 W

• Protection: IP66 (dust and water resistant)

• Temperature: -20°C to +50°C

Box Contents

• Dahua P5D-5F-PV Camera

• Installation Guide
