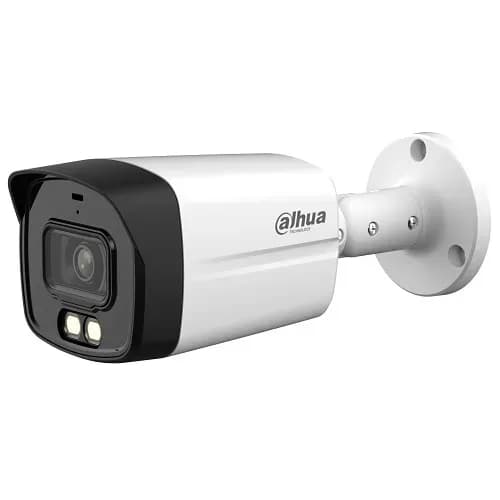

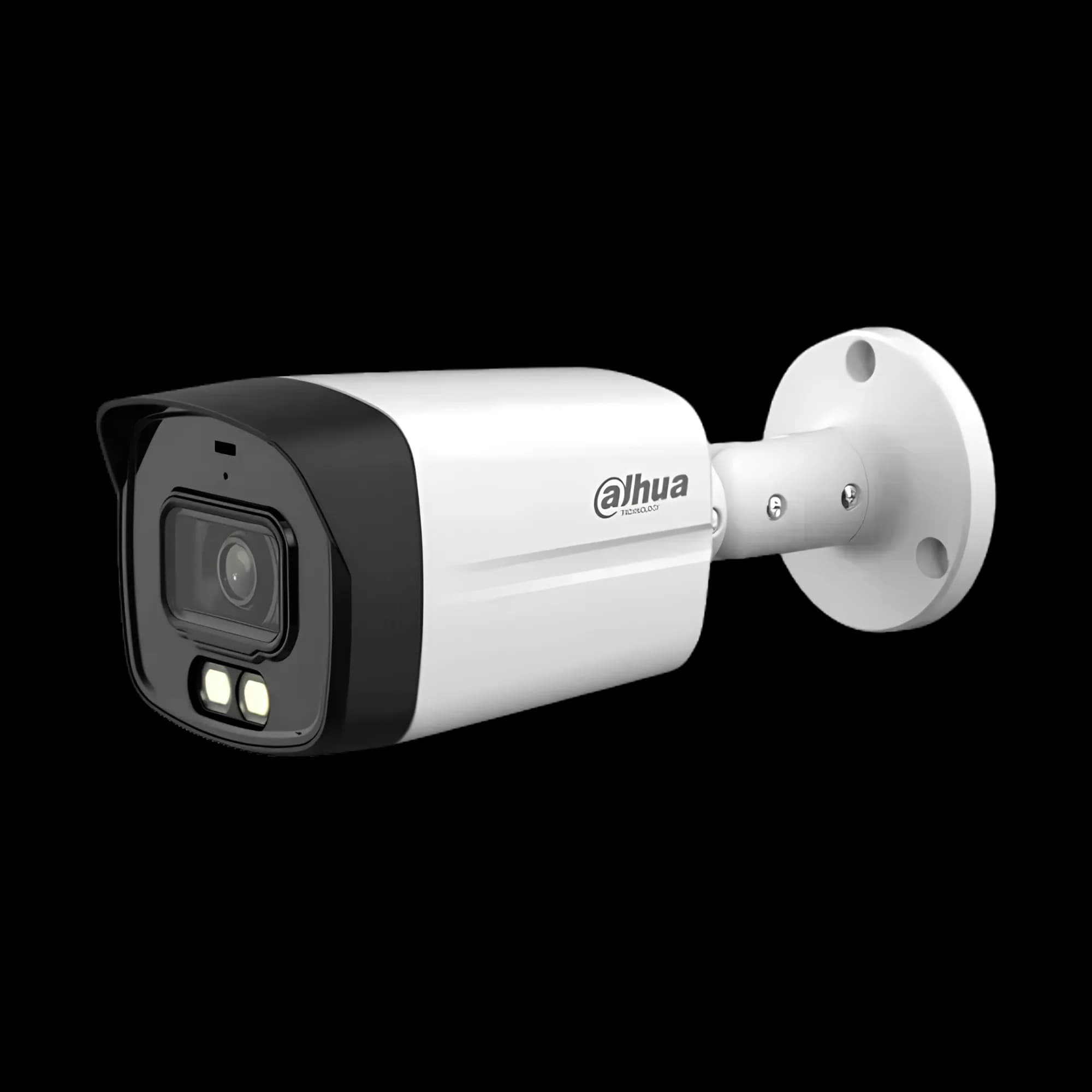

Dahua HAC-HFW1809TLM-A-LED-0360B 4K Full-Color HDCVI Bullet Camera

• Ideal for: 24/7 outdoor and indoor surveillance, parking lots, streets, yards, perimeters, and residential areas

• Easy installation with wall or ceiling mounting

Note: This model is an HDCVI analog camera and is NOT an IP / Wi-Fi camera. It requires a recorder (XVR/DVR) for operation.

Image Sensor and Resolution

• Image Sensor: 8MP 1/2.8" Progressive Scan CMOS

• Max Resolution: 3840 x 2160 (8MP / 4K UHD)

• Frame Rate: up to 15 fps@4K

• Min. Illumination: 0.005 lux@F1.6 (Color), 0 lux (illuminator on)

Lens and Field of View

• Lens Type: Fixed-focal

• Focal Length: 3.6 mm (standard); 2.8 mm optional

• Max. Aperture: F1.6

Full-Color and Illumination

• Full-Color: 24/7 color imaging, even in complete darkness

• Illumination Distance: up to 40 m (with Smart Warm Light)

• Smart Dual Light: combines IR LED and Warm Light

Video Compression and Storage

• Codec: H.265, H.264, MJPEG (Sub Stream)

• Video Output: 4‑in‑1 (HDCVI/HDTVI/AHD/CVBS) via one BNC port

Technologies and Features

• WDR: 120 dB true WDR for clear images in challenging lighting conditions

• 3D NR (Noise Reduction): reduces image noise

• Super Adapt: automatic image adaptation

• Smart Light+: intelligent illumination control

• Audio: Built-in microphone for high-quality audio transmission

Connectivity and Power

• Video Output: 1x BNC (CVI/TVI/AHD/CVBS)

• Power Supply: 12 VDC ±30%

• Power Consumption: max 580 mA

Environment and Protection

• Protection: IP67 (dust and water resistant)

• Operating Temperature: -40°C to +60°C

• Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°

Box Contents

• Dahua HAC-HFW1809TLM-A-LED Camera

• Installation Guide

• Power Adapter (depending on variant)
