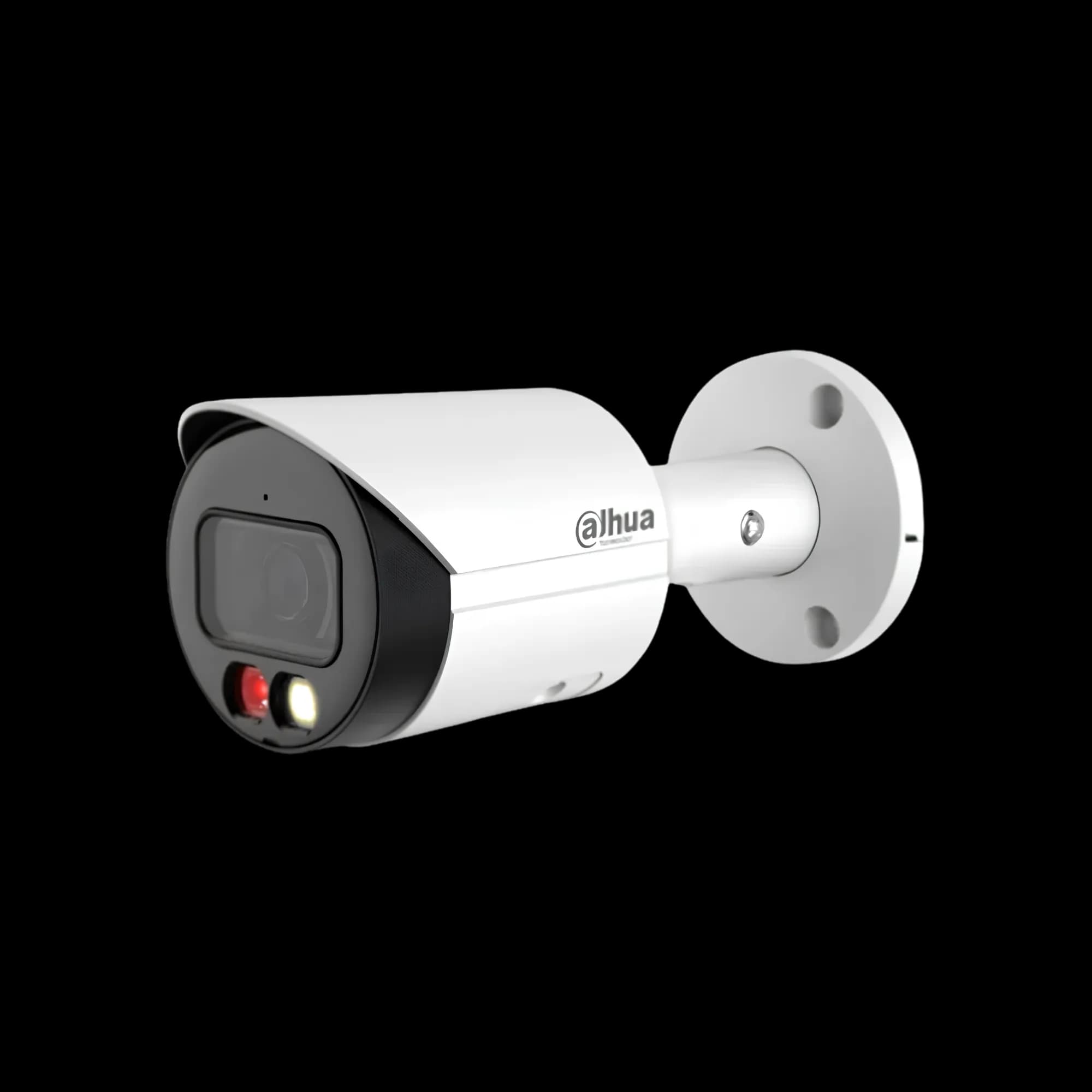

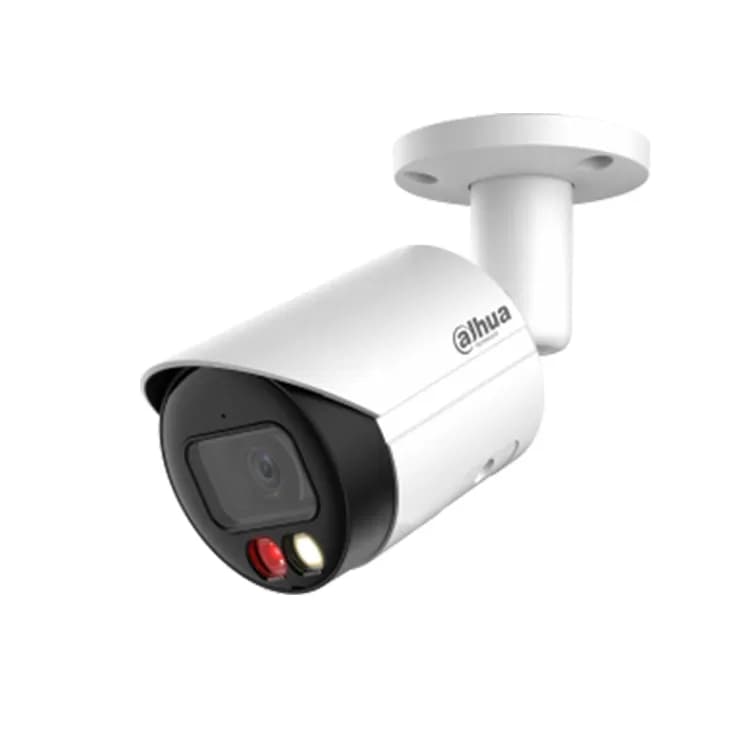

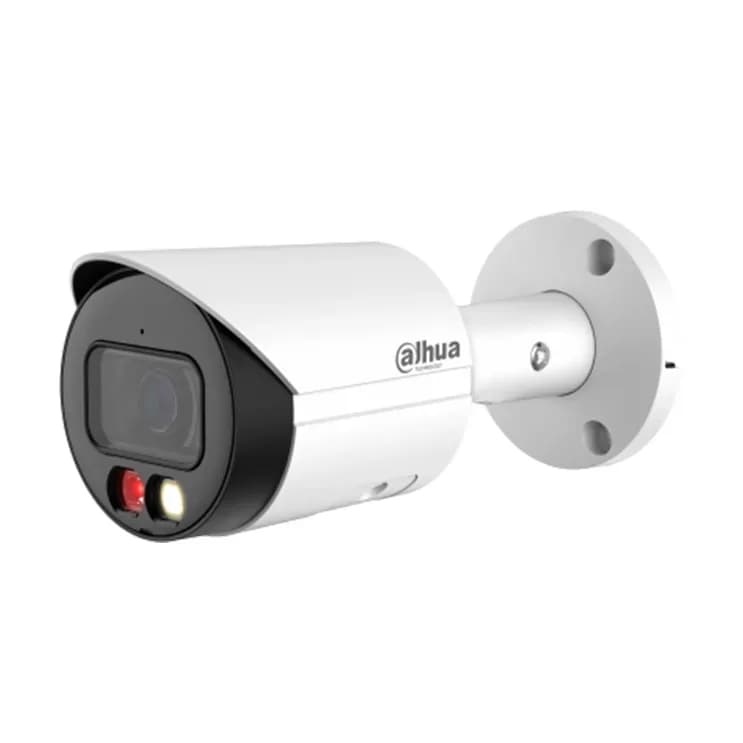

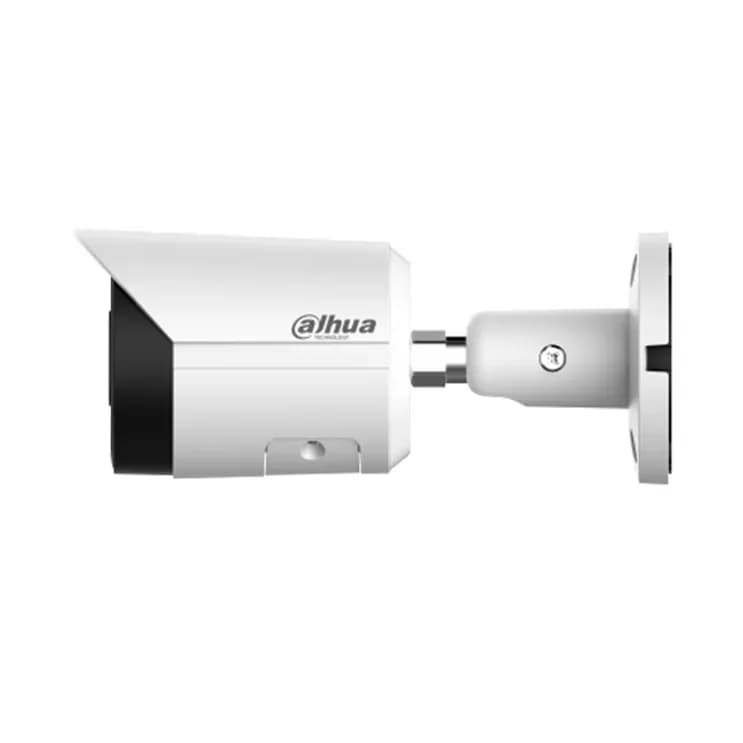

Dahua HFW2649S – 2MP bullet, IR, H.265, IP67.

• Ideal for: 24/7 outdoor and indoor surveillance, parking lots, streets, yards, warehouses, and perimeters

• Easy installation with wall or ceiling mounting

Note: This model is 6MP and is NOT 2MP as shown in the product description. Please verify the exact model before purchasing.

Image Sensor and Resolution

• Image Sensor: 1/2.7" Progressive Scan CMOS

• Max Resolution: 3288 (H) × 1850 (V) (6MP)

• Frame Rate: up to 20 fps at 6MP, or 25/30 fps at 2688×1520

• Min. Illumination: 0.007 lux@F1.6 (Color), 0.0007 lux@F1.6 (B/W)

Lens and Field of View

• Lens Type: Fixed-focal

• Focal Length: 2.8 mm or 3.6 mm (depending on variant)

• Max. Aperture: F1.6

• Field of View (2.8 mm): H: 112°, V: 61°, D: 132°

• Field of View (3.6 mm): H: 91°, V: 46°, D: 110°

Smart Dual Light and Night Vision

• Smart Dual Light: combines IR LED and Warm Light for Full-Color night vision

• IR Distance: up to 30 m

• Warm Light Distance: up to 30 m

• Illuminator Number: 1 (IR LED) + 1 (Warm light)

• Illuminator Control: Auto/Manual

Video Compression and Storage

• Codec: H.265, H.264, H.264H, H.264B, MJPEG (Sub Stream)

• Compression: Smart H.265+, Smart H.264+ for ultra-low bitrate and storage savings

• ROM: 128 MB, RAM: 256 MB

• Micro SD Card: up to 256 GB for local storage

Connectivity and Power

• Network Interface: 1x RJ-45 (10/100 Base-T)

• Power Supply: 12 VDC or PoE (802.3af)

• Power Consumption: max 5.9W

Artificial Intelligence and Analytics

• SMD Plus: Smart Motion Detection that filters false alarms and classifies humans and vehicles

• Perimeter Protection: Intrusion and Tripwire with accurate human and vehicle detection

• Abnormality Detection: Motion Detection, Video Tampering, Audio Detection, SD Card Error, Network Disconnection, IP Conflict, Illegal Access

• WDR, 3D NR, HLC, BLC, Digital Watermarking

• Built-in Microphone: Yes

Physical and Environmental

• Protection: IP67 (dust and water resistant)

• Operating Temperature: -40°C to +60°C

• Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
