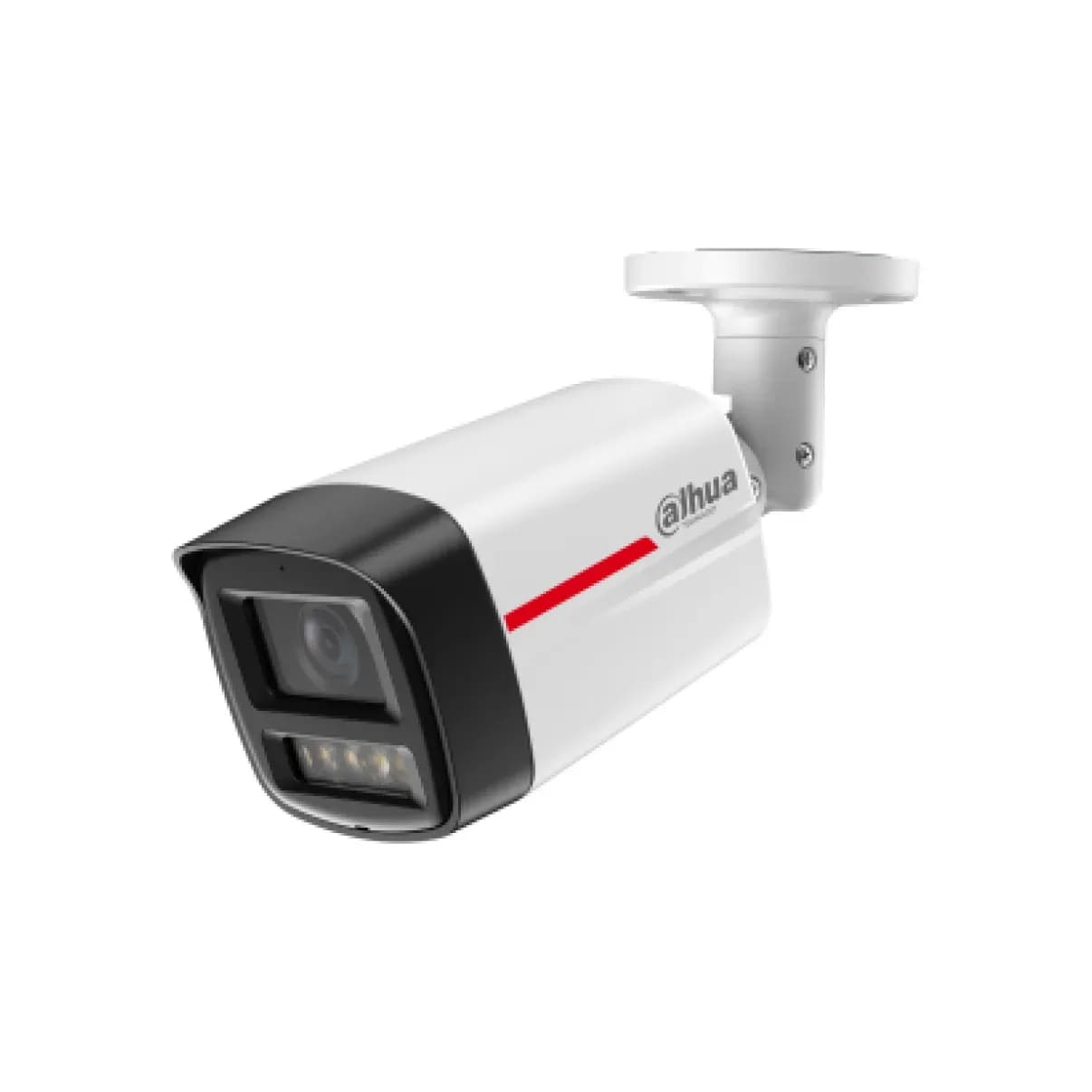

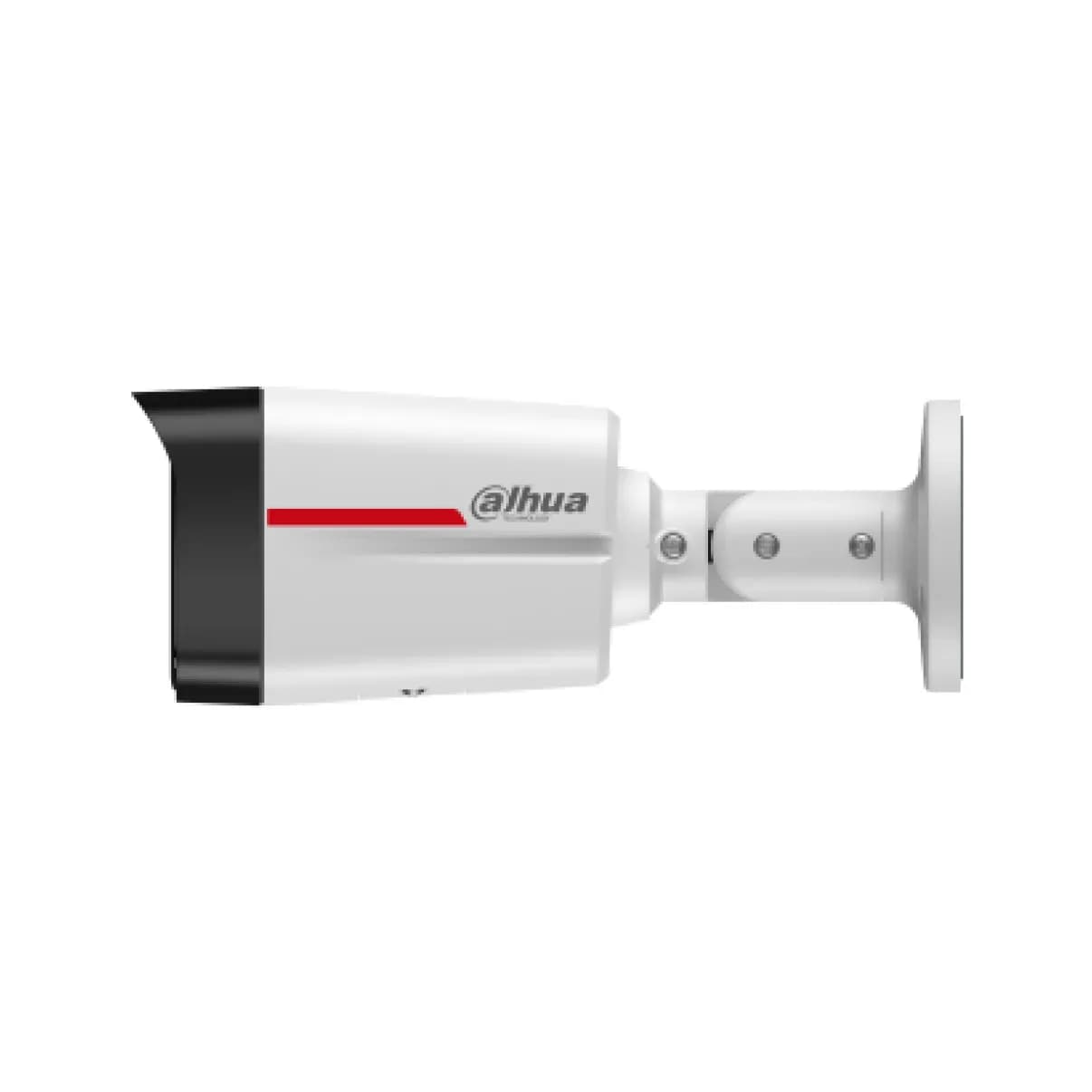

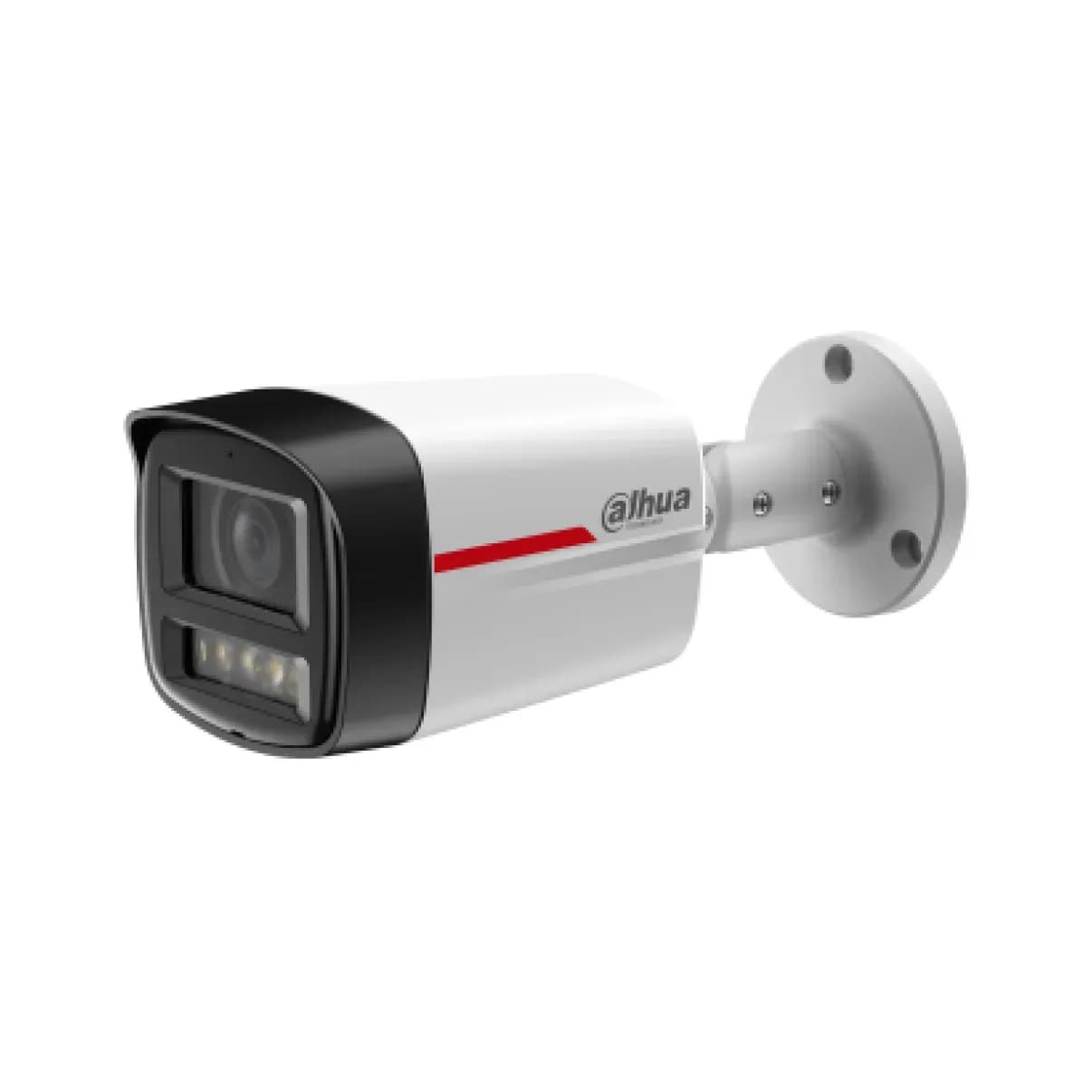

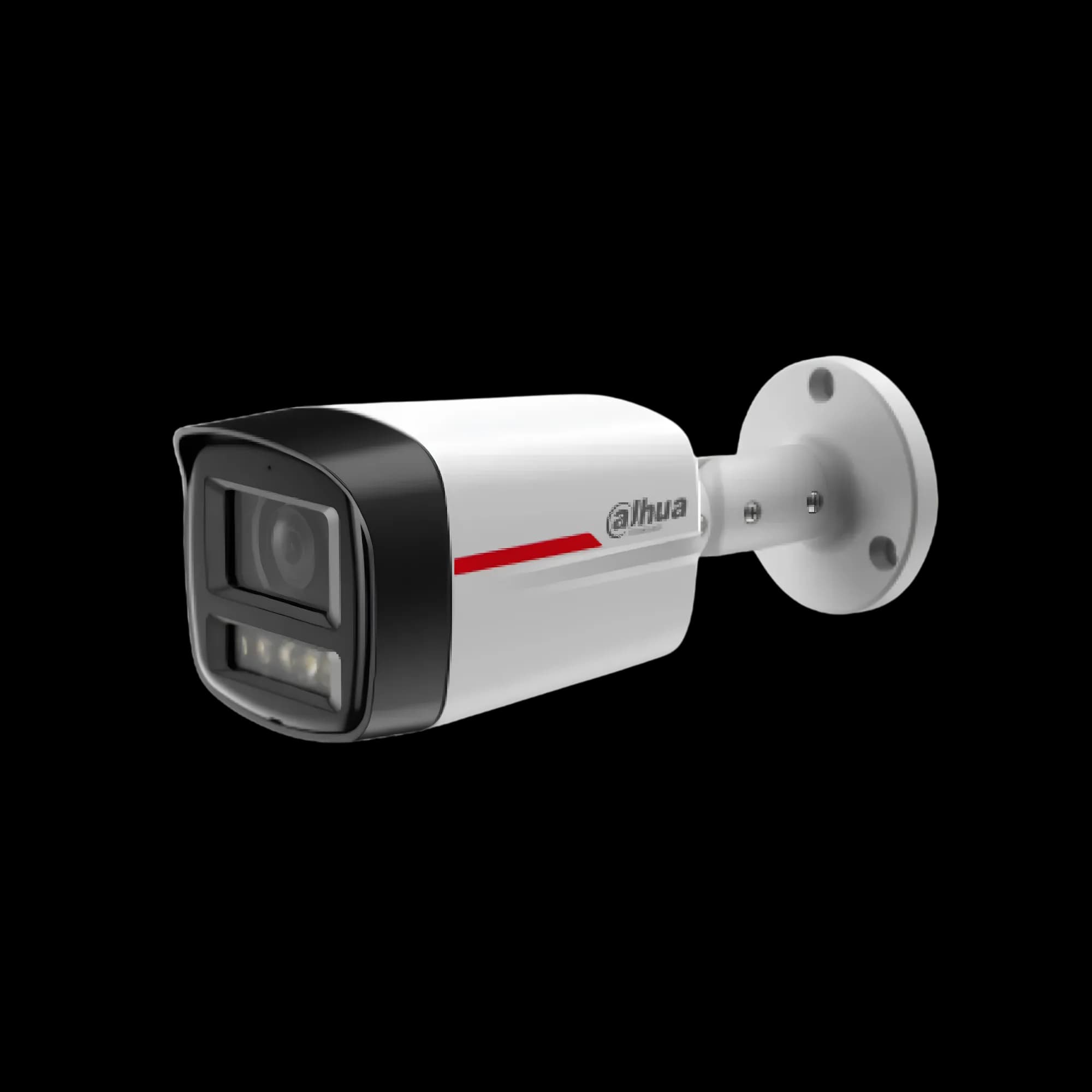

DAHUA IPC-HFW2649TL-S-LED-0280B-PRO 6mpx Bullet WizColor Wizsense Network Audio

• Ideal for: 24/7 outdoor and indoor surveillance, parking lots, streets, yards, warehouses, and perimeters

• Applications: WizColor provides color images at night, while AI-ISP and SMD Plus offer intelligent detection and accurate alerts

• Easy installation with wall or ceiling mounting and 360° angle adjustment

Image Sensor and Resolution

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Max Resolution: 3288 (H) × 1850 (V) (6MP)

• Frame Rate: up to 20 fps at 6MP, or 25/30 fps at 4MP (2688×1520)

• Min. Illumination: 0.0002 lux@F1.0 (Color)

• S/N Ratio: >56 dB

Lens and Field of View

• Lens Type: Fixed-focal

• Focal Length: 2.8 mm

• Max. Aperture: F1.0

• Field of View (2.8 mm): H: 92°, V: 51°, D: 107°

WizColor and Illumination

• WizColor Technology: 24/7 color imaging even in low-light conditions

• AI-ISP: advanced AI-assisted image processor for automatic scene adaptation

• Smart Dual Light: 4 integrated Warm Light LEDs

• Illumination Distance: up to 50 m

• Illuminator Control: Auto/Manual

Video Compression and Storage

• Codec: H.265, H.264, H.264H, H.264B, MJPEG (Sub Stream)

• Compression: Smart H.265+, Smart H.264+ for ultra-low bitrate and storage savings

• ROM: 128 MB, RAM: 256 MB

• Micro SD Card: up to 256 GB for local storage

• Streaming Capability: 2 streams

Artificial Intelligence and Analytics

• SMD Plus: Smart Motion Detection that filters false alarms and classifies humans and vehicles

• Perimeter Protection: Intrusion and Tripwire with accurate human and vehicle detection

• Abnormality Detection: Motion Detection, Video Tampering, Audio Detection, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Voltage Detection

• Smart Search: works with Smart NVR for intelligent search

• WDR: 120 dB true WDR

• 3D NR, HLC, BLC, Digital Watermarking

• Privacy Masking: 4 areas

Audio

• Built-in Microphone: Yes

• Audio Compression: G.711a, G.711Mu, PCM, G.726

• Audio Detection: Yes

Connectivity and Power

• Network Interface: 1x RJ-45 (10/100 Base-T)

• Power Supply: 12 VDC or PoE (802.3af)

• Power Consumption: ≤ 7.4W

Physical and Environmental

• Protection: IP67 (dust and water resistant)

• Operating Temperature: -40°C to +60°C

• Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°

• Default IP Address: 192.168.1.108

• ONVIF: Profile S
