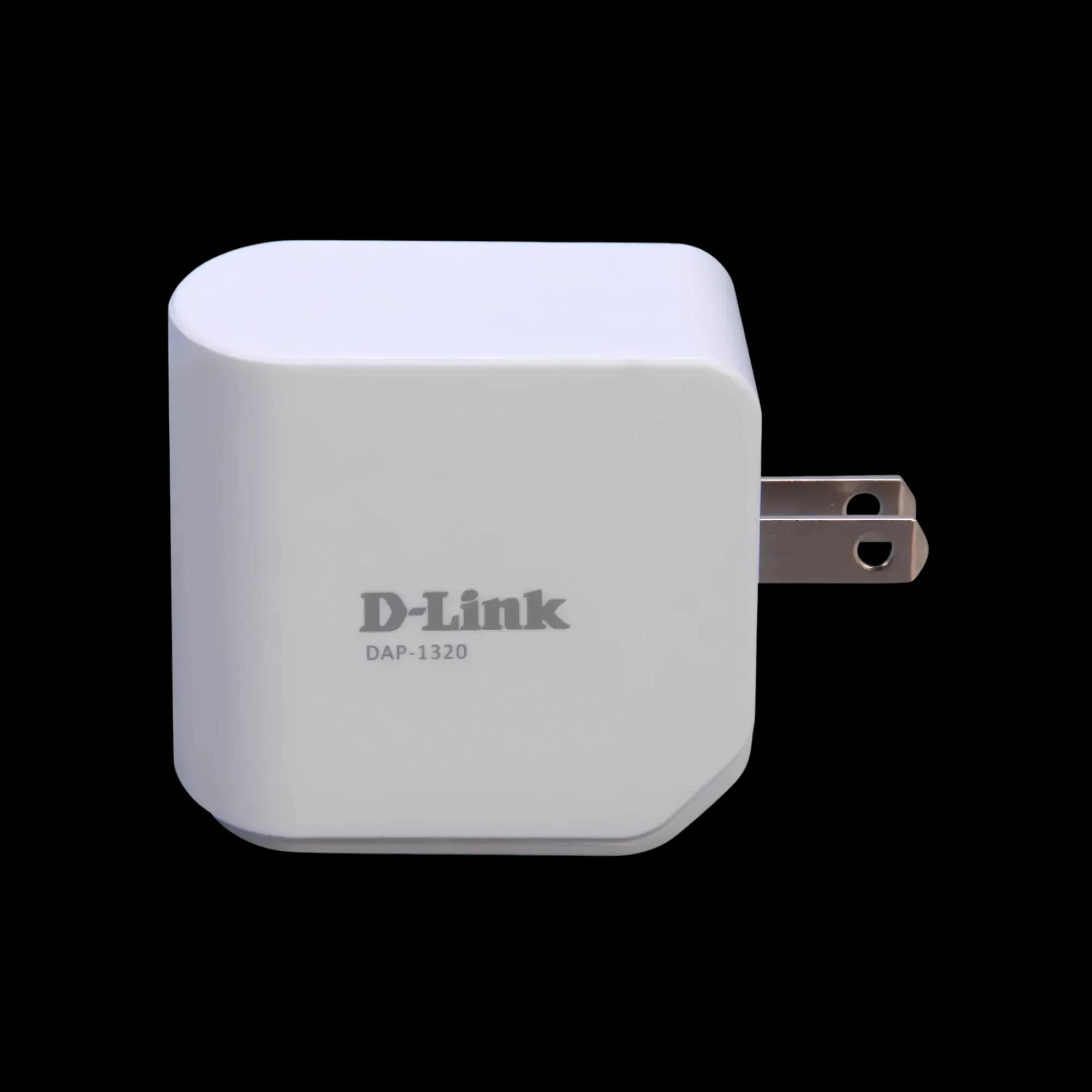

D-Link DAP-1320 Wireless Range Extender – Extends Wi-Fi coverage, compact, easy setup.`

• Brand: D-Link

• Model: DAP-1320

• Type: Wireless Range Extender / Repeater for home and small offices

• Standard: Wireless N (802.11n)

• Color: White

• Material: Durable plastic

• Dimensions: 48 x 42 x 53.5 mm

• Weight: 69 g

• Design: Wall-Plug (power adapter form factor) with no external cables for clean, clutter-free installation

• Ideal for: extending Wi-Fi signal to distant rooms, other floors, or areas with weak signal

• Applications: streaming, gaming, browsing, and connecting wireless devices at greater distances

• Placement: halfway between the Router and the devices needing a stronger signal

Note: This product has been discontinued (EOL - End of Life) by D-Link as of April 21, 2019, with support ending on April 20, 2021. Available only on the used market.

Wireless and Performance

• Standard: 802.11b/g/n

• Wireless speed: up to 300 Mbps (N300)

• Band: Single Band 2.4 GHz

• Antennas: 2 embedded omnidirectional antennas

• Output power: up to 20 dBm

Connectivity and Ports

• Ethernet Port: None (wireless only)

• Buttons: WPS, Reset

• LED: Status/WPS

Power

• Method: Plugs directly into electrical outlet (Wall-Plug) – no external adapter

• Consumption: low

Features and Installation

• Installation methods: One-Touch WPS for automatic connection to Router

• QRS Mobile App: easy configuration via smartphone (iOS/Android) without a computer

• Built-in Setup Wizard: manual configuration via web browser

• Universal compatibility: works with any brand Router or Access Point

• Extended Network: creates a new Wi-Fi network with its own SSID and password

• Security: WEP 64/128-bit, WPA/WPA2 Encryption

Environment

• Warranty: 3-year Limited Warranty

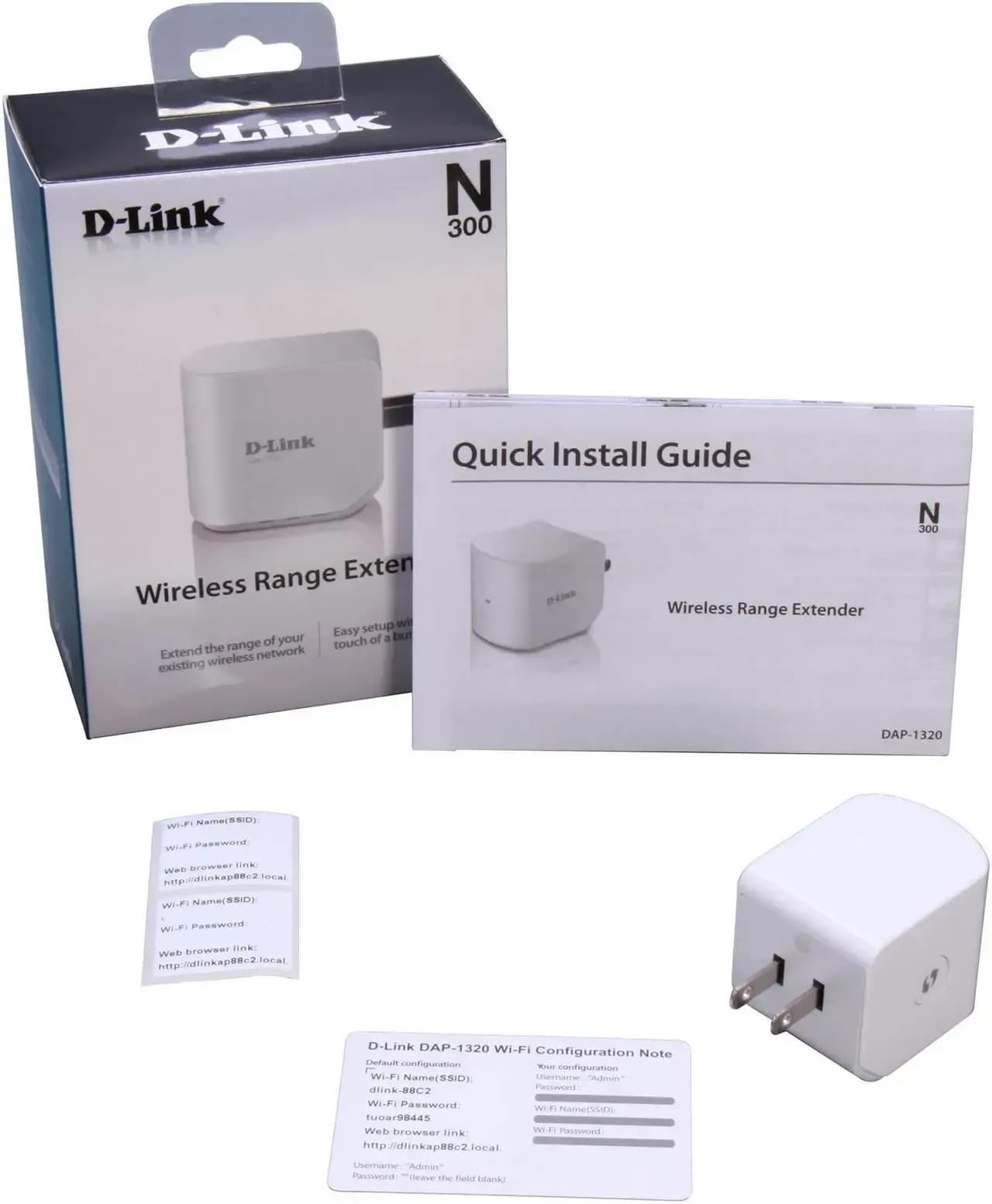

Box Contents

• D-Link DAP-1320 Wireless Range Extender

• Quick Install Guide

• Wi-Fi Configuration Card with default SSID and Password
