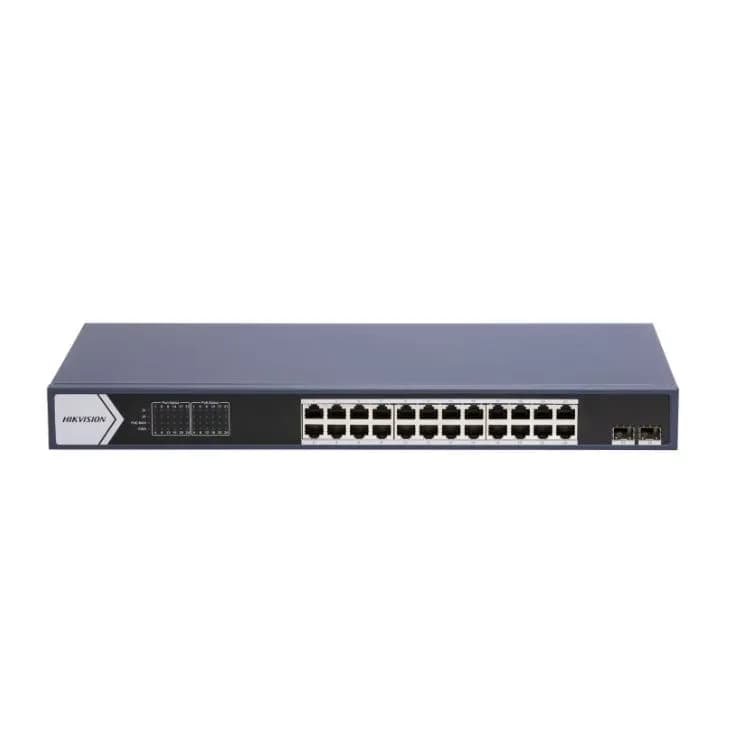

Hikvision DS-3E0526P-E 24-Port Gigabit PoE-Compliant Unmanaged Network Switch

• Dimensions (W x H x D): 440.0 mm x 44.0 mm x 220.8 mm

• Ideal for: IP surveillance systems, Hikvision cameras, VoIP phones, Access Points, and other PoE devices

• Connect up to 24 network devices simultaneously

• Data transmission and power delivery over a single Ethernet cable

• Excellent solution for small and medium businesses, retail stores, offices, and commercial environments

Ports and Speed

• 24x Gigabit PoE ports: 10/100/1000 Mbps

• 1x Gigabit RJ45 Uplink port: 10/100/1000 Mbps

• 1x Gigabit SFP (fiber optic) port: 10/100/1000 Mbps

• MAC Address Table: 8K entries

Performance

• Switching Capacity: 52 Gbps (non-blocking)

• Packet Forwarding Rate: 38.69 Mpps

• Internal Cache: 4.1 Mbits

• Store-and-Forward switching

Power over Ethernet (PoE)

• PoE Standard: IEEE 802.3af and 802.3at (PoE+)

• PoE Ports: 1 through 24

• Max power per port: 30 W

• Total PoE Power Budget: 370 W

• PoE Power Pin: End-span: 1/2(+), 3/6(-)

Power and Environment

• Power Supply: 100~240 VAC, 50/60 Hz, Max. 6.5 A

• Max Power Consumption: 400 W

• Idle Power Consumption: 30 W

• Operating Temperature: -10°C to 55°C (14°F to 131°F)

• Storage Temperature: -40°C to 85°C

• Operating Humidity: 5% to 95% (non-condensing)

Features and Safety

• Plug & Play: no configuration required

• Fanless: silent operation

• Surge Protection: 6 kV for PoE ports

• Standards: IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z

• Installation: Desktop or Rack (1U) with included mounting ears

• Certifications: FCC, CE, IC, RCM, UL, CB
