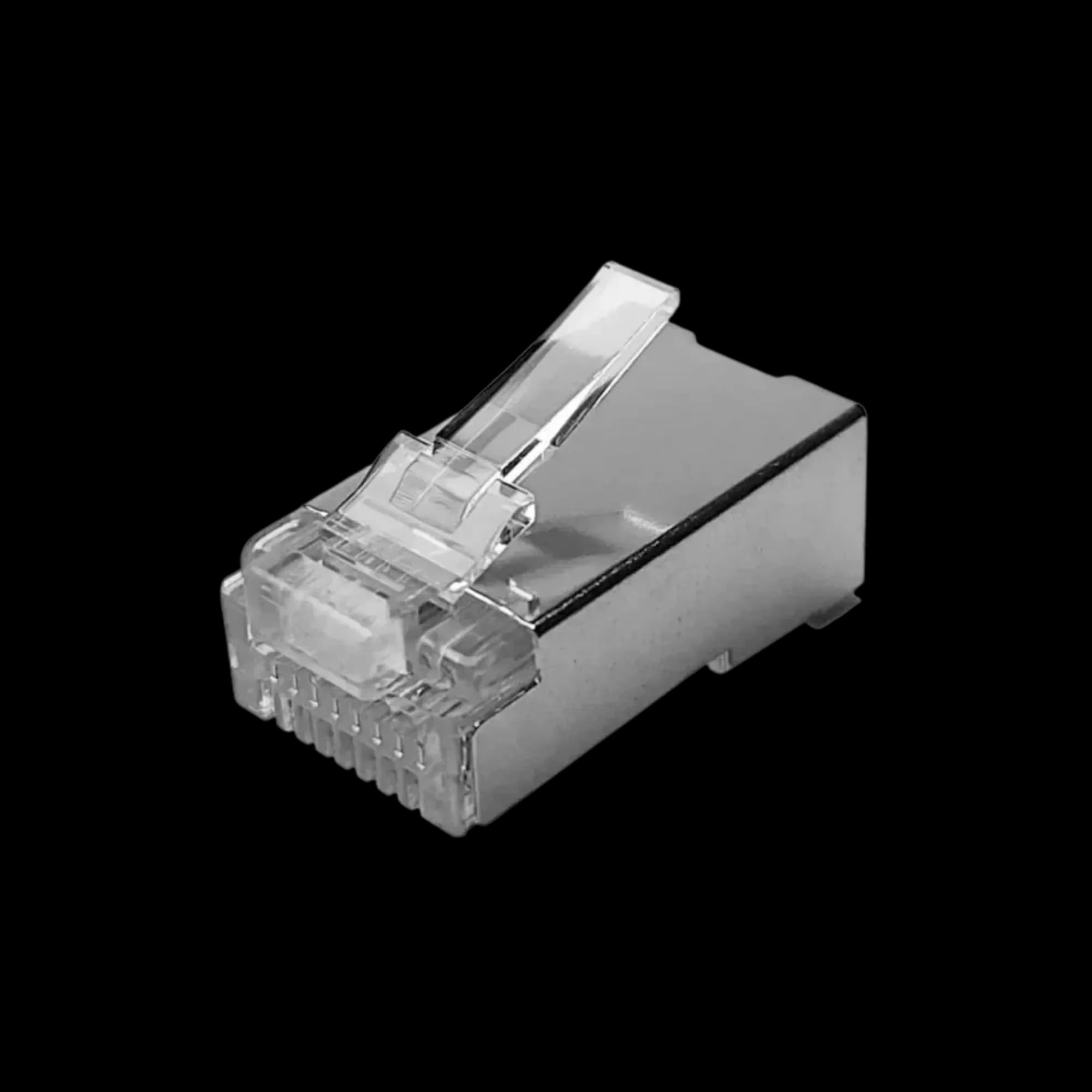

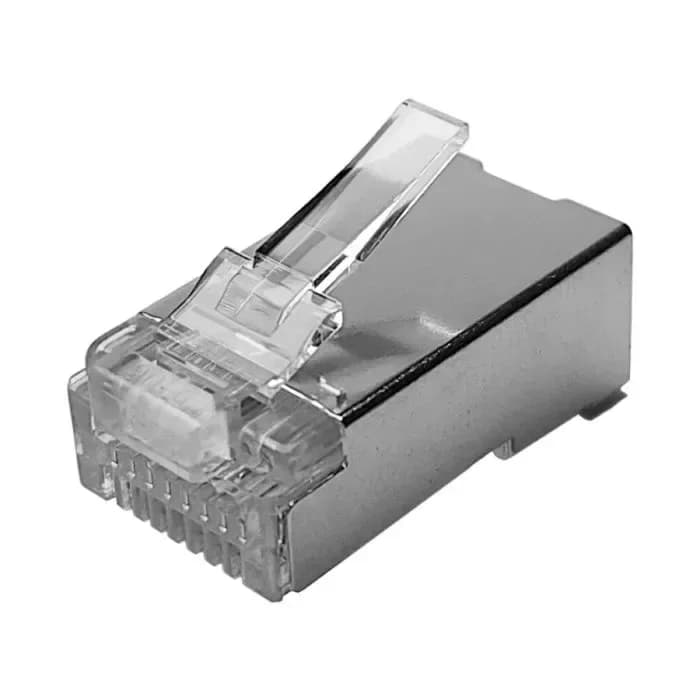

KOKA_RRJETI_ RJ45_FTP_CAT6
| Brand | NO_NAME |
|---|---|
| Category | RRJETI / AKSESORE RRJETI |
| SKU | KOKA_RRJETI_ RJ45_FTP_CAT6 |
| Type | RJ45 Modular Connector (Network Plug / Crystal Head) |
| Shielding | FTP (Foiled Twisted Pair) - shielded with aluminum foil |
| Connector | 8P8C (RJ45 Male) |
| Usage | Gigabit Ethernet (1 Gbps) and 10 Gbps networks (over shorter distances) |
| Housing | Transparent PC plastic with high durability and UL94V-2 flame retardant properties |
| Metal Shield | Outer zinc or nickel-plated copper casing for interference protection |
| Contacts | 50 micron Gold-Plated (50µ) for high conductivity, oxidation resistance, and optimal… |
Construction and Materials
Housing: Transparent PC plastic with high durability and UL94V-2 flame retardant properties
Metal Shield: Outer zinc or nickel-plated copper casing for interference protection
Contacts: 50 micron Gold-Plated (50µ) for high conductivity, oxidation resistance, and optimal signal transmission
Contact Design: 3-prong for secure wire contact
Compatible Cable Range: FTP and F/UTP cables with outer diameter up to 6.2 mm
Conductor Range: 22-26 AWG
Shielding and Performance
FTP Shielding: Aluminum foil shielding blocks electromagnetic and radio frequency interference (EMI/RFI) to protect equipment and data
Crosstalk Reduction: Staggered nose design significantly reduces crosstalk between cable pairs
PoE Support: Compatible with Power over Ethernet (PoE and PoE+)
Installation
Termination: Requires standard RJ45 crimping tool for installation
Cable Types: Compatible with solid and stranded conductors
Wiring Schemes: T568A and T568B
Operating Temperature: -40°C to +85°C
Durability: Over 750 insertion/removal cycles
