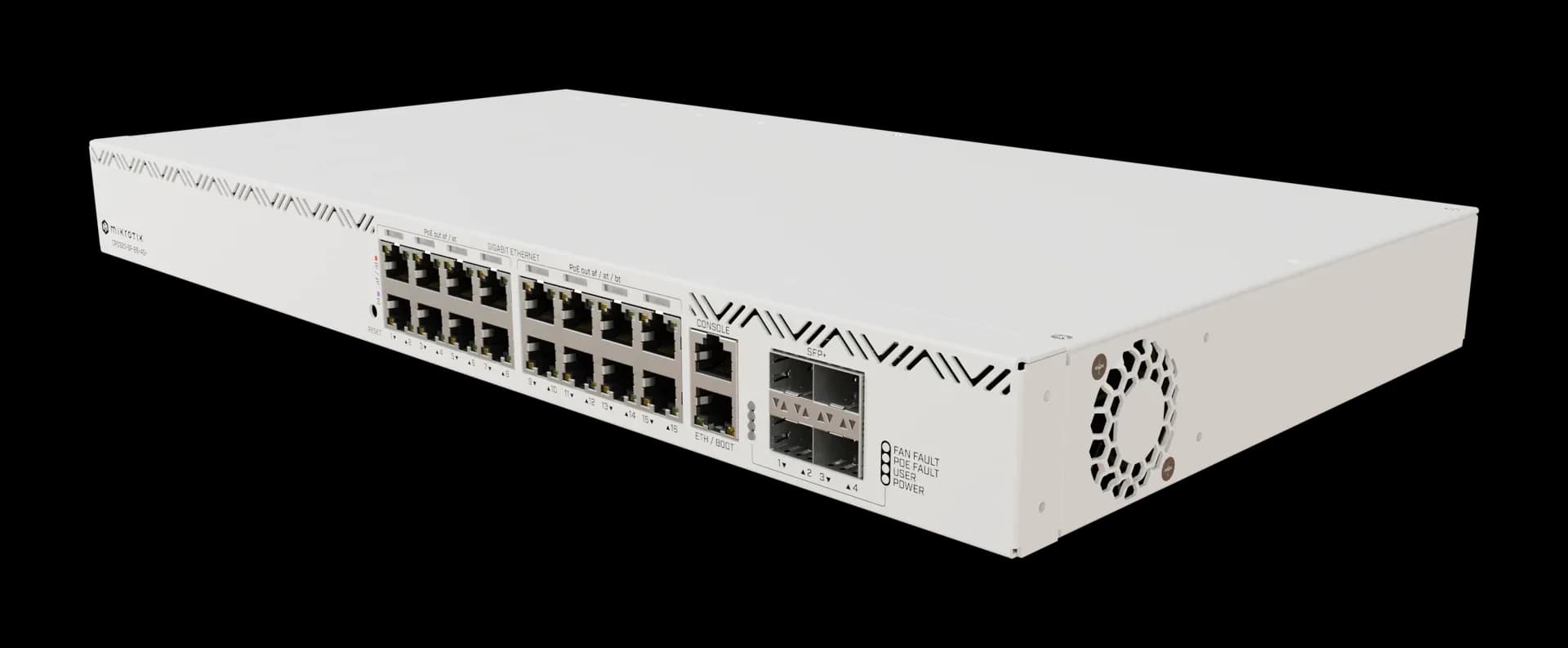

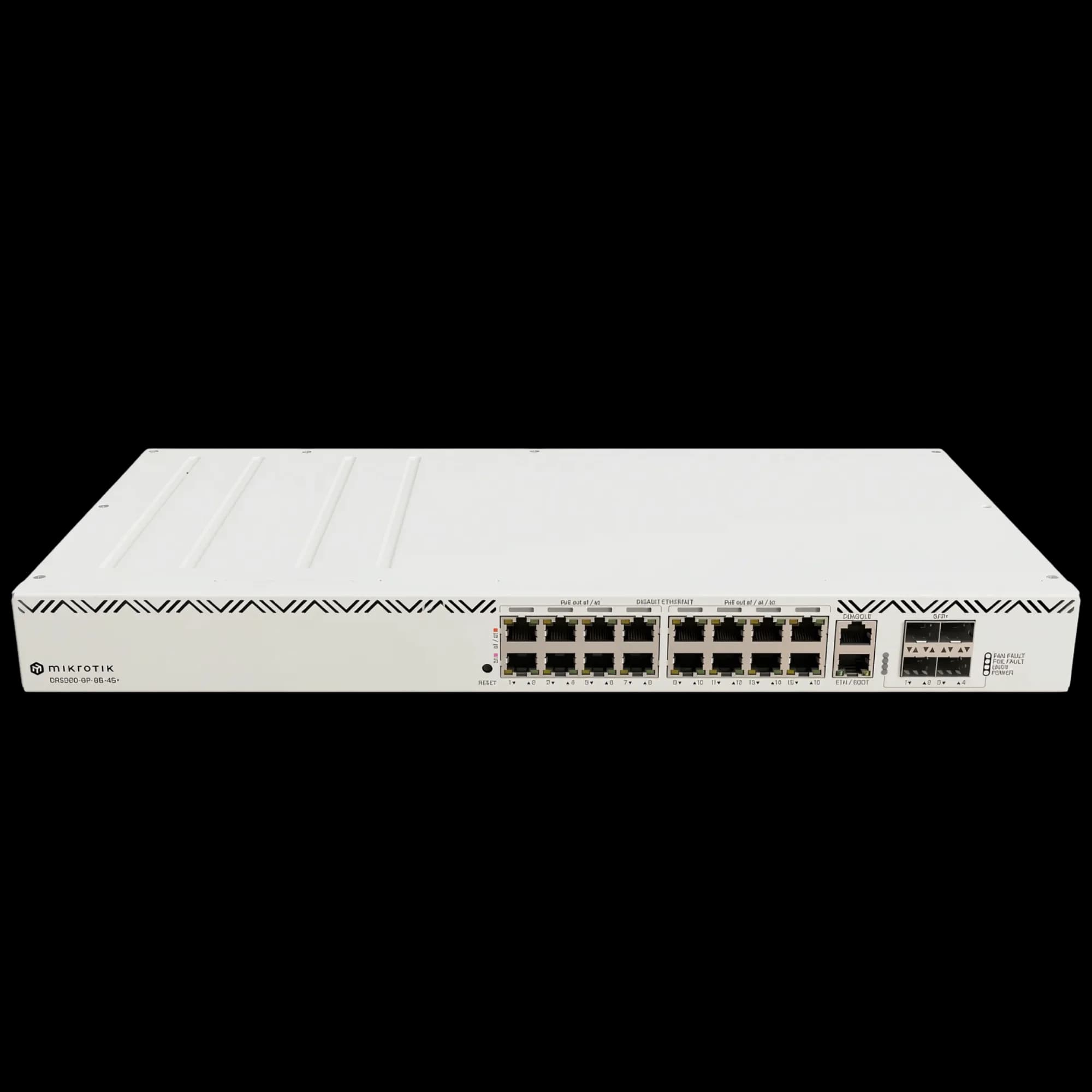

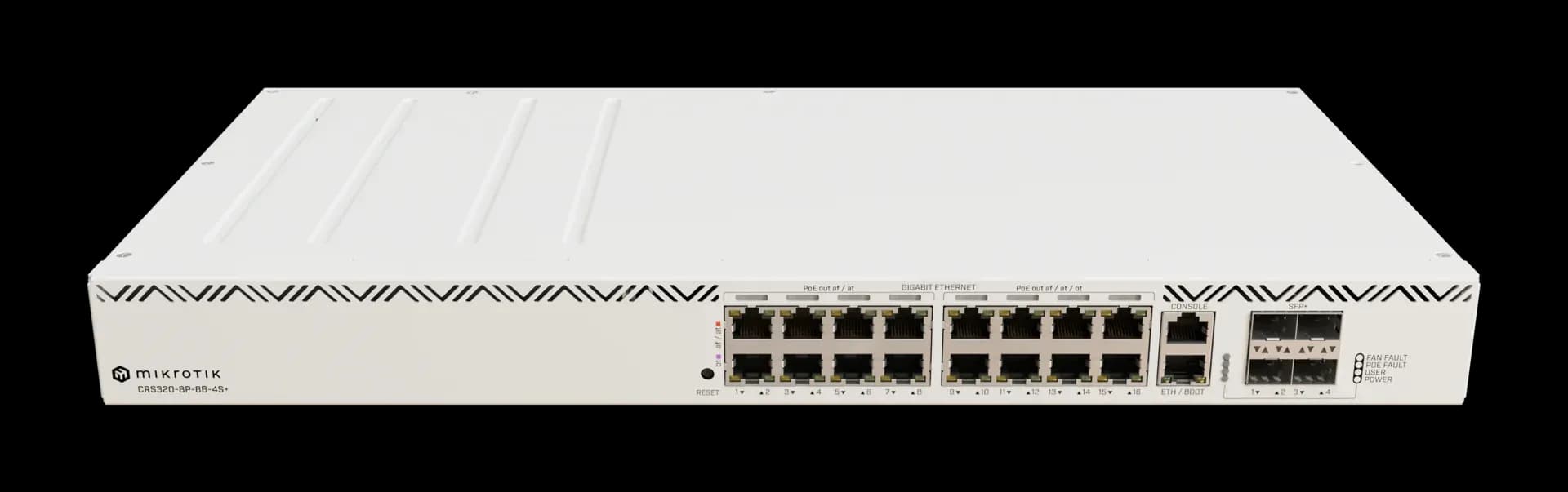

MIKROTIK_CRS320-8P-8B-4S+RM

• Brand: MikroTik

• Model: CRS320-8P-8B-4S+RM

• Type: High-Power PoE++ Cloud Router Switch (802.3bt)

• Product code: CRS320-8P-8B-4S+RM

• Architecture: ARM 32bit

• Operating System: RouterOS v7 / SwitchOS (Dual Boot, License Level 5)

• Dimensions: 1U rackmount (443 x 360 x 44 mm)

• Color: White

• MTBF: ~200,000 hours at 25°C

• Ideal for: hotels, conference halls, offices, high-rise buildings, data centers, and environments requiring high-power PoE for multiple devices

• 10G fiber connectivity via SFP+ ports for core network uplink

• Compact 1U solution for standard racks with expandable power supply (up to 1150W)

• Replaces messy DC adapters by powering devices through a single Ethernet cable

Processor and Memory

• CPU: Marvell 98DX226S, 2 cores, 800 MHz

• RAM: 256 MB

• Storage: 32 MB FLASH

Ports and Connectivity

• 16 Gigabit Ethernet ports (10/100/1000 Mbps) with PoE-out:

  • Ports 1-8: 802.3af/at (PoE/PoE+)

  • Ports 9-16: 802.3bt (PoE++) – up to 90W per port

  1 extra Gigabit Ethernet port for management

  4 SFP+ ports (10 Gbps) for fiber uplink

  1 RJ45 Serial Console port

  1 USB Type-A port (on some variants)

  PoE and Power

  • Total PoE power budget: up to 963 W

  • Max system power: 600 W (up to 1150 W with additional PSU)

  • Max current per port (PoE+): 560 mA

  • Max current per port (PoE++): 1667 mA

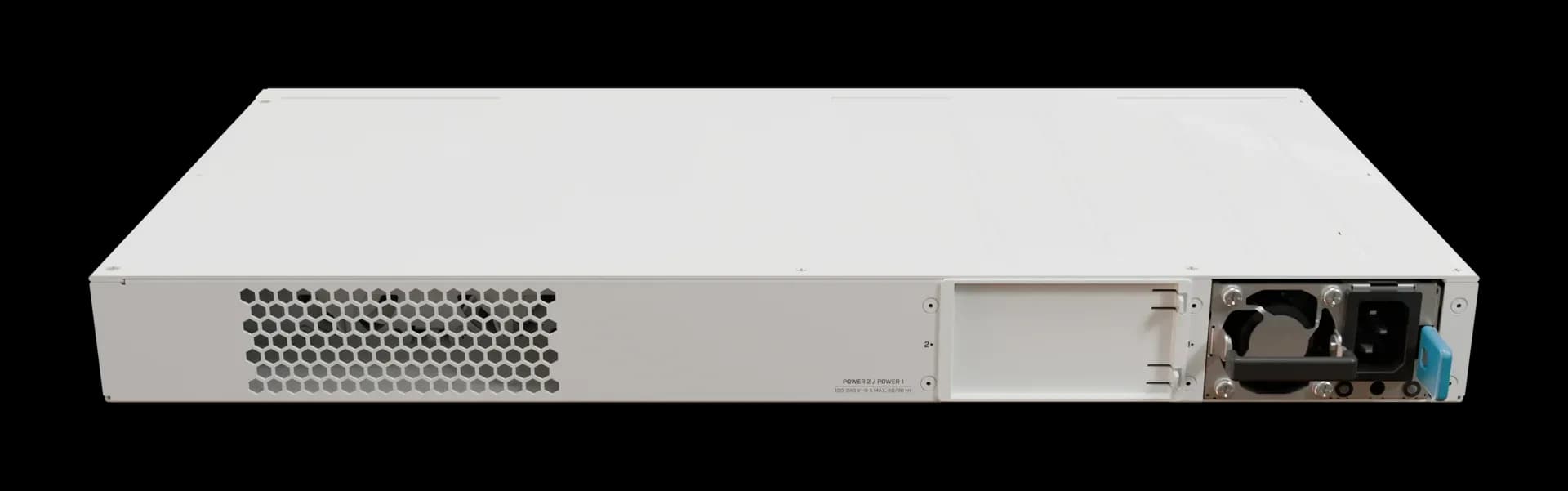

  • Input: AC 100-240V, 50-60Hz (1x Hot-Swap PSU included, 2 PSU slots)

  • Power consumption without attachments: 36 W

  • Cooling: 3 fans

  • Operating temperature: -10°C to 50°C

  Performance and Features

  • Switching capacity: 32 Gbps

  • Hardware-offloaded L3 routing

  • VLAN-filtering

  • Link Aggregation (LACP)

  • Dual boot: supports RouterOS (for routing and Layer 3 features) and SwitchOS (for simplified switch functions)

  • Cloud-managed: remote management

  • Free updates: for at least 5 years

  • Certifications: CE, EAC, ROHS

  • MikroTik's first full implementation of 802.3af/at/bt

  • Full 1 Gbps wire-speed switching on all ports

  • Supports demanding PoE++ devices: 4K cameras with heating elements, LED screens, PoE lighting fixtures, and more

  Box Contents

  • CRS320-8P-8B-4S+RM Switch

  • 1x Hot-Swap 600W Power Supply

  • 1x Power cord (IEC)

  • 2x Rackmount ears for 1U installation

  • Quick start guide
