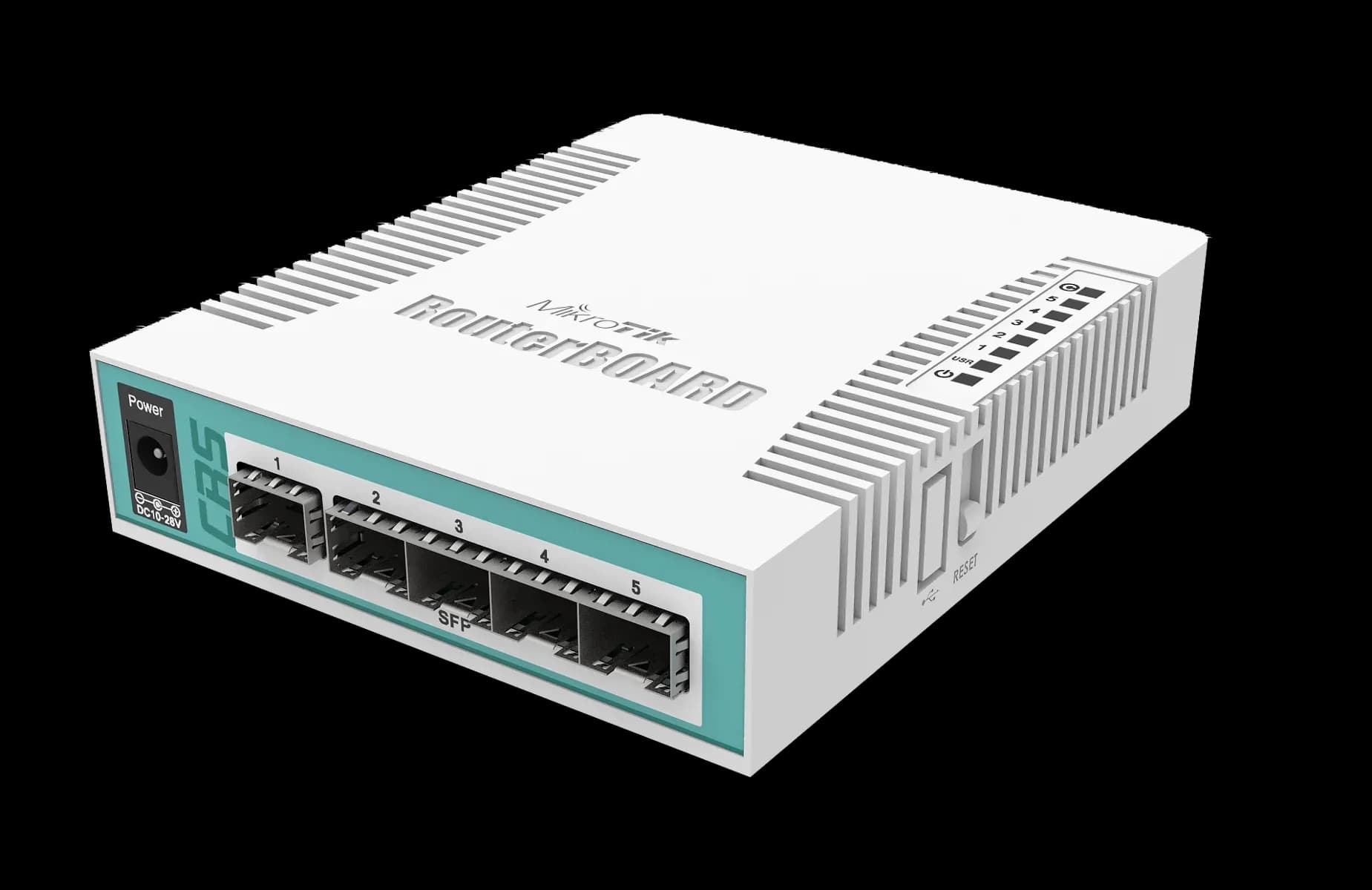

MIKROTIK CRS106-1C-5S

• Ideal for: short-distance fiber optic connections, such as connecting devices on the same floor or in the same office

• Used to connect up to six SFP devices (switches, routers, servers, cameras, etc.)

Processor and Memory

• CPU: QCA8511, 1 core, 400 MHz

• RAM: 128 MB

• Storage: 16 MB FLASH

• MTBF: ~100,000 hours at 25°C

Ports and Connectivity

• 1x Combo port (SFP or Gigabit Ethernet)

• 5x SFP cages (1.25 Gbps)

• 1x Serial console port RJ45

• Compatible with 100Mbit and 1.25G SFP modules

Power

• Max power consumption: 11 W

• Input: DC jack 11-30 V or Passive PoE 11-30 V

• Cooling: Passive (fanless)

Physical

• Dimensions: 114 x 137 x 29 mm

• Mounting: Desktop

• Color: White

• Operating temperature: -20°C to 70°C

Performance

• Layer 2 throughput: up to 5.9 Gbps (1518 byte)

• Layer 2 capacity: up to 11.8 Gbps (1518 byte)

• Layer 1 throughput: up to 6.0 Gbps

• Packet forwarding rate: 10 Mpps

• Smart Switch with dual operating systems: can be used as a managed switch (SwOS) or as a full router with RouterOS Level 5

• Cost-effective fiber optic connectivity: an economical solution for connecting up to six SFP devices

• Compact and silent design: fanless desktop case, ideal for offices and small spaces

• Flexible power options: via DC jack or Passive PoE on the combo port

• Free updates: for at least 5 years

• Full RouterOS: firewall, VPN, PPPoE, QoS, Proxy, and more

Box Contents

• CRS106-1C-5S Switch

• 24V 0.8A Power Supply

• Quick start guide
