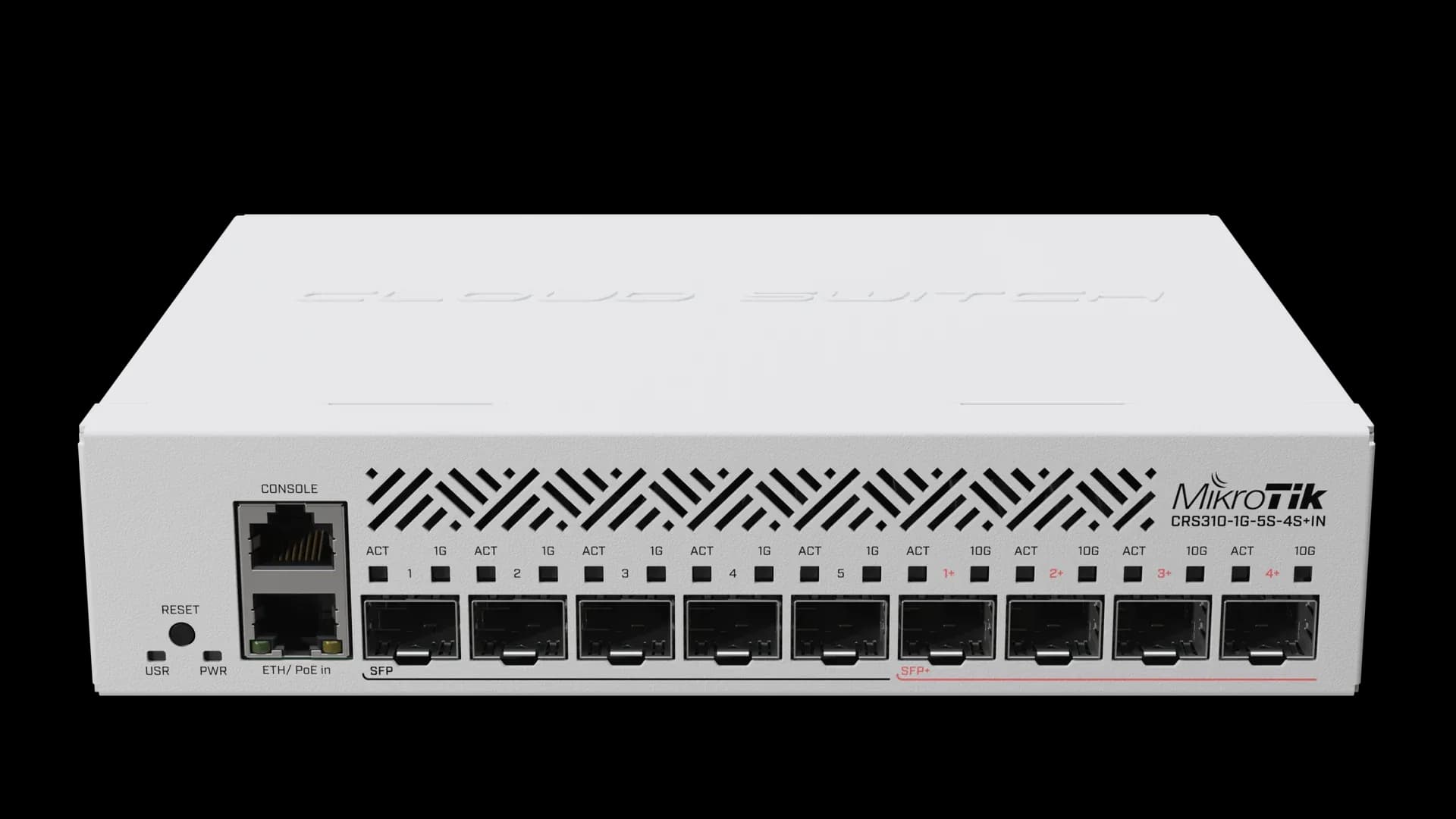

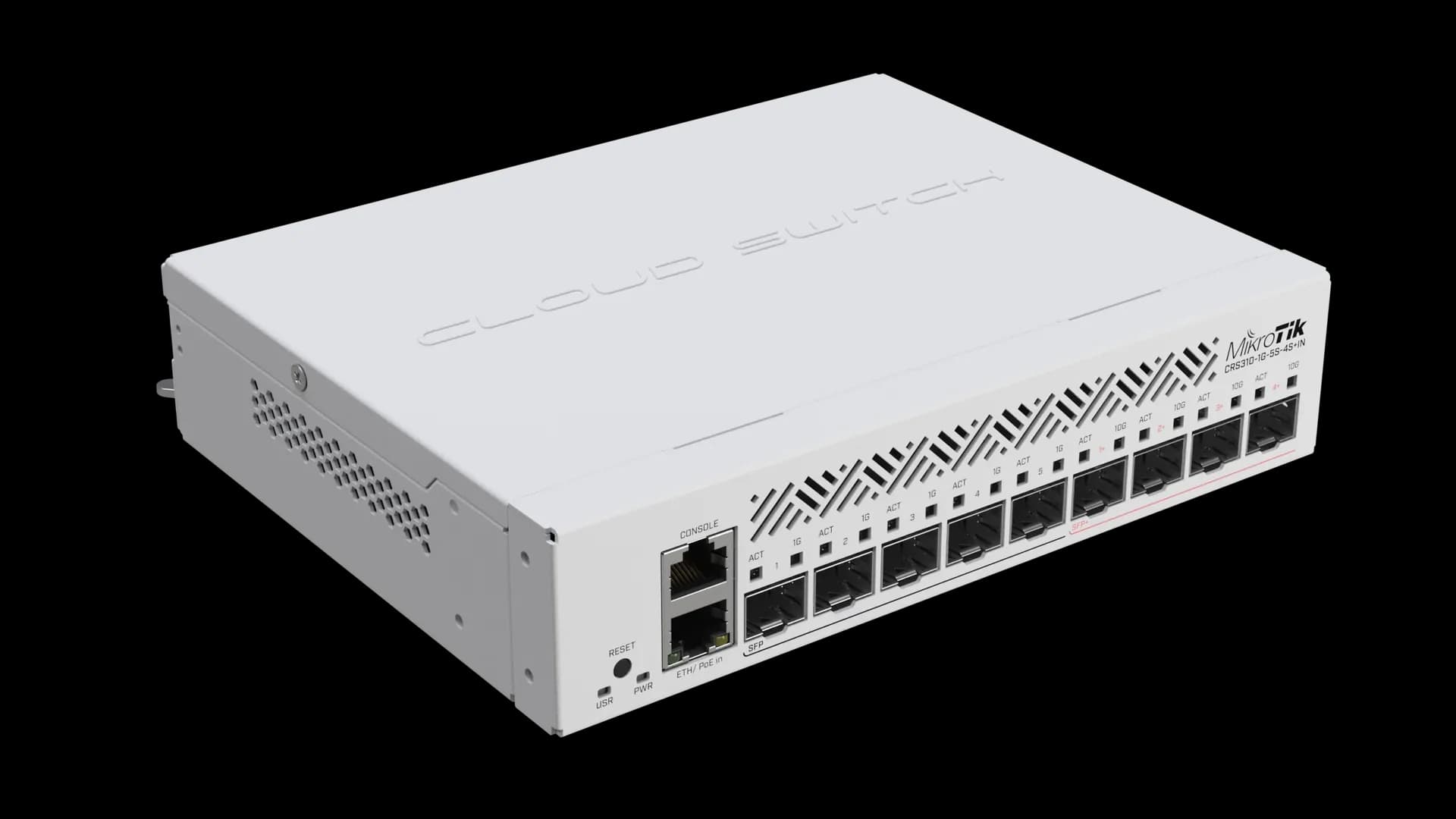

MikroTik CRS310-1G-5S-4S+IN 10-Port Switch with 5x SFP and 4x SFP+ Ports

• Ideal for: homes, small offices, homelabs, and small to medium ISPs

• Cost-effective 10G connectivity via SFP+ ports for NAS, virtualization hosts, workstations, and uplinks

• Compact solution for 10 Gigabit fiber networks over distances exceeding 100 meters

• Perfect upgrade for existing CRS212 setups

Processor and Memory

• CPU: Marvell 98DX226S, 2 cores, 800 MHz

• RAM: 256 MB

• Storage: 16 MB FLASH

• Switch Chip: Marvell 98DX226S

• MTBF: ~200,000 hours at 25°C

Ports and Connectivity

• 1x Gigabit Ethernet port (10/100/1000 Mbps)

• 5x SFP ports (1.25 Gbps)

• 4x SFP+ ports (10 Gbps)

• 1x RJ45 serial console port

Power

• Max power consumption: 20 W (8 W without attachments)

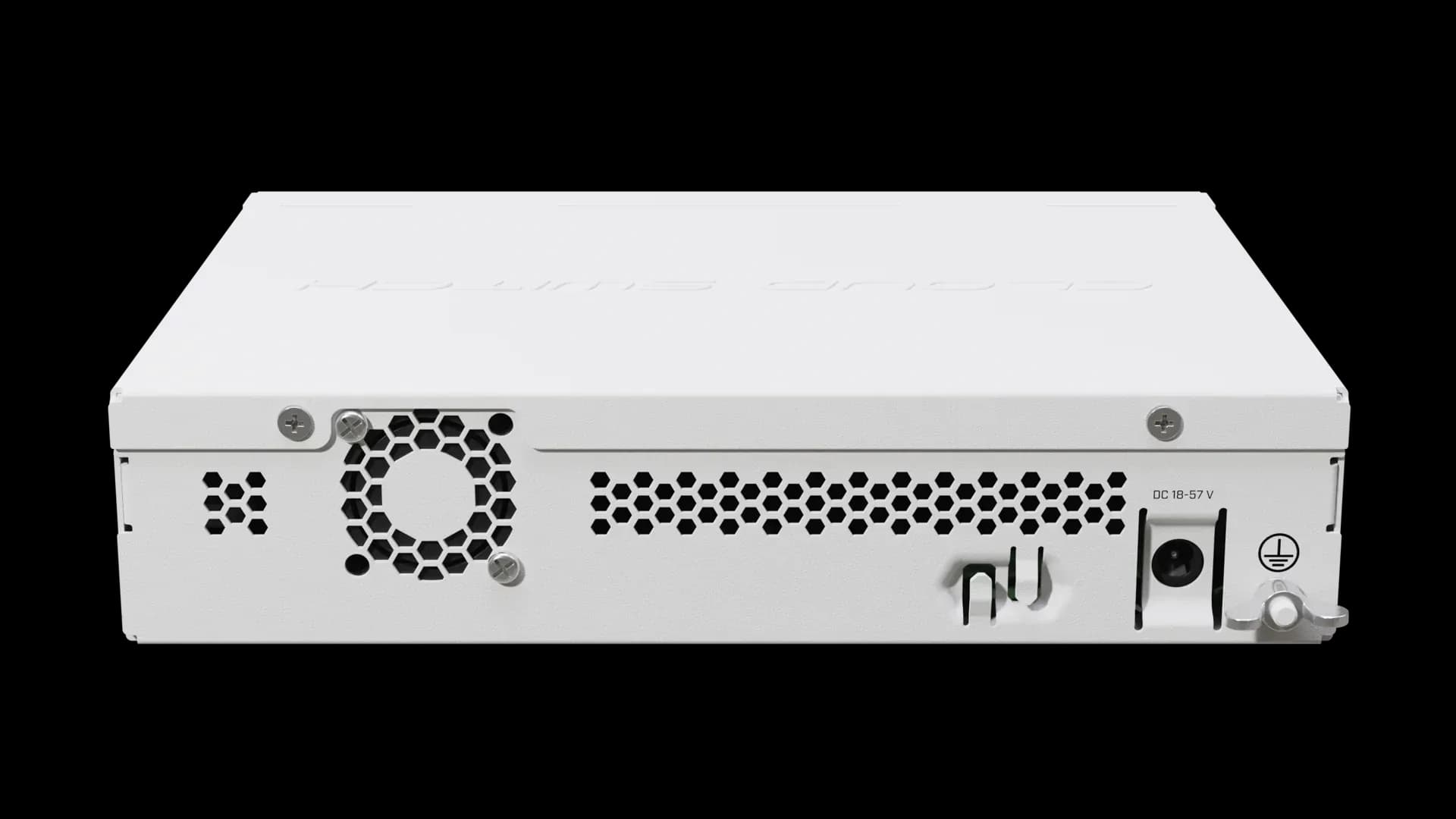

• Input: 2 options (DC jack and PoE-in)

• Voltage: DC jack 18-57 V, PoE-in 18-57 V (802.3af/at)

• Cooling: 1 fan

Physical

• Dimensions: 200 x 166 x 44 mm

• Mounting: Desktop or Rack (1U) with included rackmount ears

• Color: White

• Operating temperature: -40°C to 70°C

• Protection: IP20

• Certifications: CE, EAC, ROHS

Performance and Features

• Switching capacity: 90 Gbps (Layer 2)

• Packet capacity (64 byte): 68,452.4 kpps (Layer 2 throughput)

• Non-blocking Layer 2 throughput: 3.74 Mpps

• Hardware offloaded VLAN-filtering

• Hardware offloaded L3 routing

• Dual boot: supports RouterOS (for routing and Layer 3 features) and SwOS (for simplified switch functions)

• Cloud-managed: remote management

• Free updates: for at least 5 years

Box Contents

• CRS310-1G-5S-4S+IN Switch

• Rackmount ears for 1U installation

• K-48 mounting kit

• 24V 1.2A power supply
