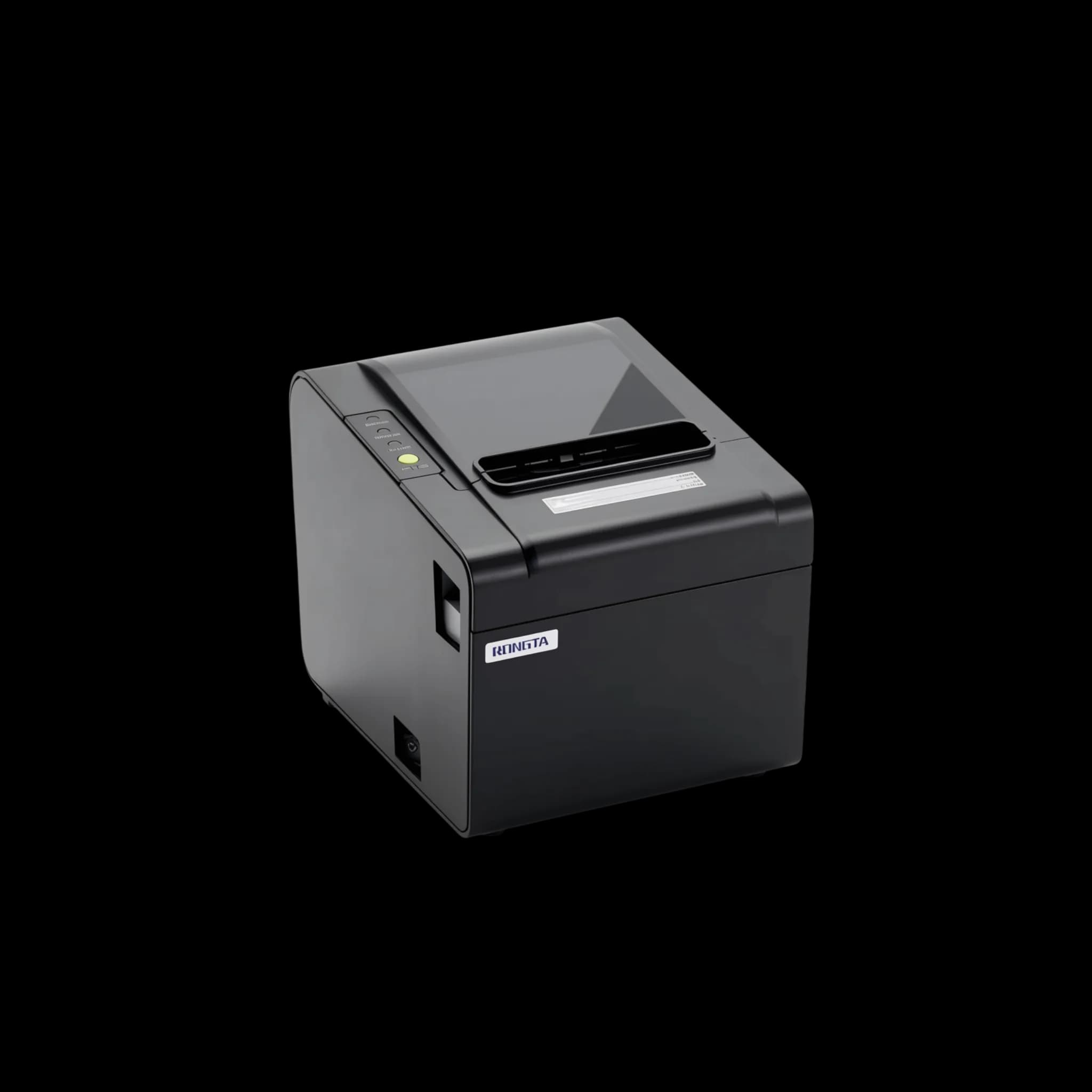

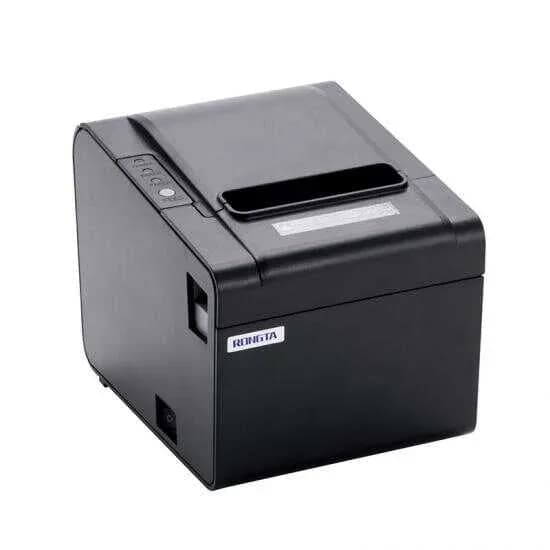

RONGTA RP325 THERMAL RECEIPT PRINTER

Printing

• Method: Direct Thermal (no ink or toner required)

• Resolution: 203 dpi (8 dots/mm)

• Print width: 72 mm or 48 mm (compatible with 58 mm paper)

• Max print speed: 250 mm/s

• Print Head Lifespan: 100 km

• Automatic Paper Cutter: 1.5 million cuts

Media (Paper)

• Types: Thermal continuous paper, Black label paper

• Paper width: 79.5 ± 0.5 mm

• Thickness: 0.06 – 0.08 mm

• Max paper roll diameter: φ80 mm (φ89 mm max)

• Paper Loading: Easy-loading mechanism

Barcodes and Fonts

• 1D Barcodes: UPC-A, UPC-E, EAN-13, EAN-8, CODE39, CODABAR, ITF, CODE93, CODE128

• 2D Barcodes: PDF417, QR Code

• Fonts: ASCII, GB18030 (Chinese)

• International code pages: PC437, Katakana, PC850, PC860, PC863, PC865, WPC1252, PC866, PC852, PC858 and 10 others

Hardware

• Print density: 512 dots/line or 576 dots/line

• LED indicators: Yes

• Buttons: Power switch

• Buzzer: Yes

Connectivity

• USB (standard Type-B)

• Ethernet (RJ45, 10/100M)

• Serial (optional)

• Bluetooth (optional)

• WiFi (optional)

• Cash Drawer: 6-wire RJ-11 socket, DC 24V/1A

Software and Operating Systems

• Print language: ESC/POS

• Operating systems: Windows, Linux, MacOS, iOS, Android, ChromeOS

• SDK: Windows, Android, iOS, WebPrintSDK, ChromeOS Plugin

• Driver: Windows/Linux Cups/MacOS/JavaPOS/OPOS

Power Supply

• Input: DC 24V 2.5A

• Cash drawer: DC 24V 1A

Physical

• Dimensions: 191.5 x 139.5 x 142.7 mm

• Weight: 1.016 kg

• Color: Black

• Mounting: Desktop or wall

Environment

• Operating temperature: 0°C to 45°C

• Operating humidity: 10% to 90% (non-condensing)

• Storage temperature: -20°C to 60°C

• Certifications: CCC, CE, FCC, UKCA, ROHS

Additional Features

• Low noise operation

• Low power consumption

• Supports bitmap printing and downloaded graphics

• Supports character enlargement, bolding, and underlining

• Adjustable line spacing and side margiINS
