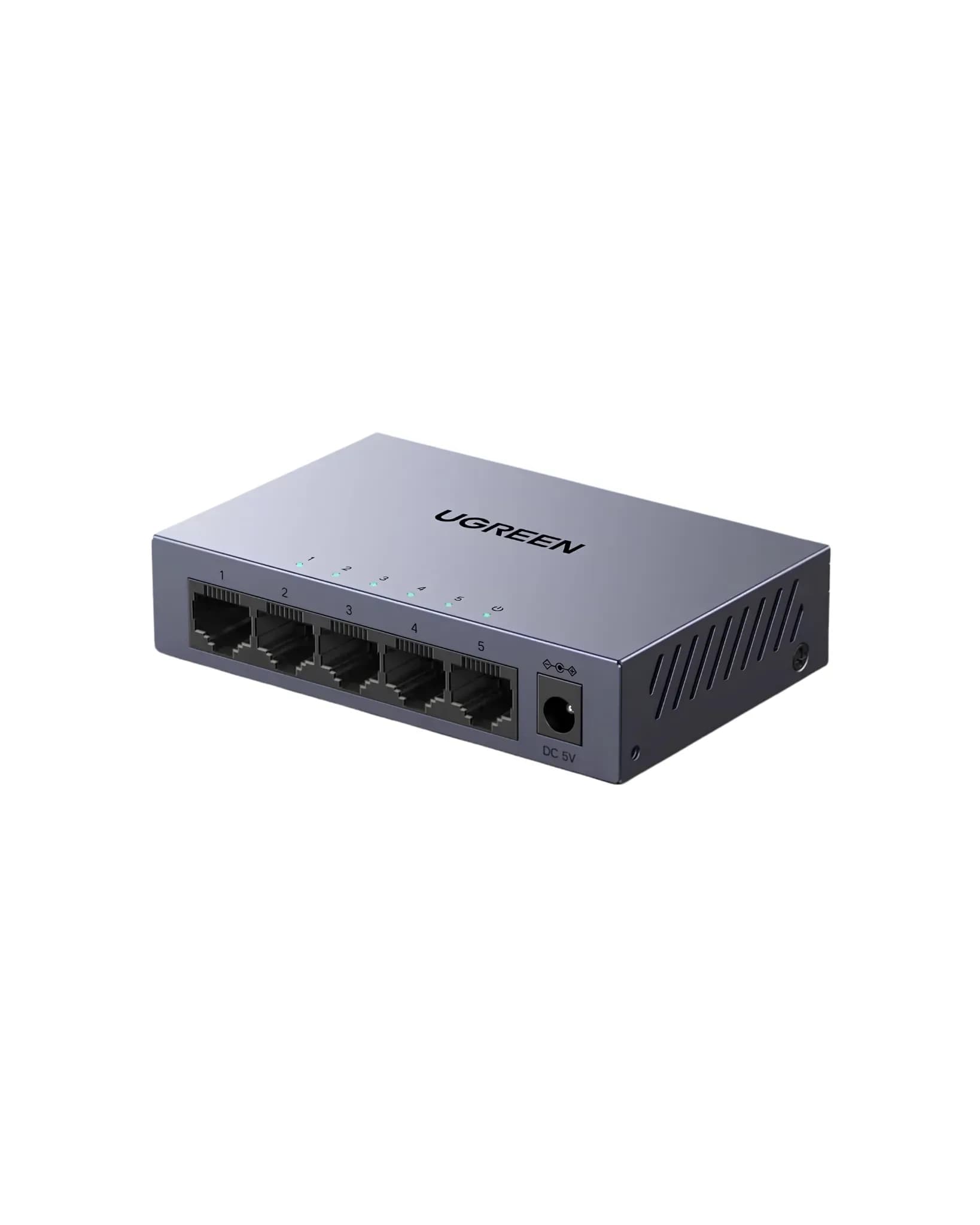

5_PORT_ETHERNET_SMART_SWITCH

Ports and Speed

• 5 RJ45 ports 10/100/1000 Mbps

• Auto MDI/MDIX: no crossover cables needed

• Switching capacity: 10 Gbps (non-blocking)

• Jumbo Frame: up to 15,000 bytes

Management and Features

• Web Management: easy configuration via web interface

• VLAN: network segmentation into logical groups

• QoS (Quality of Service): traffic prioritization

• Link Aggregation: port combining for extra bandwidth

• Port Mirroring: traffic monitoring

• IGMP Snooping: multicast traffic optimization

• Bandwidth Control: bandwidth management

Safety and Durability

• Surge protection: 6kV Surge Protection

• MAC Address Table: 2K entries

• Store-and-Forward: reliable transmission

Power and Environment

• Input: DC 5V/1A

• Consumption: low

• Temperature: 0°C to 40°C

• Humidity: 10% to 90% (non-condensing)

• Dimensions: 100 × 66 × 23 mm

• Weight: 148 g

Mounting

• Desktop or wall-mountable

• Fanless (silent operation)
